Which Pelican case?

Compare the rangesShop all Pelican cases

Specs side by side

SpecProtectorAirStormVaultMicroCargo
ShellHPX polymerHPX² polymerHPX resinHPX resinPolycarbonateRoto-moulded polyethylene
LatchesDouble-throw, push-button on somePress & PullPress & PullPush-buttonSnap latchesE-coated steel
IP ratingIP67IP67IP67IP54IP67Weather resistant
CertificationDEF STAN 81-41DEF STAN 81-41MIL-STD-810H———
Working temperature−40°C to 88°C−18°C to 60°C−29°C to 60°C−18°C to 60°C−23°C to 93°C−29°C to 60°C
WarrantyLimited lifetimeLimited lifetimeLimited lifetime3-year limitedLimited lifetimeLimited lifetime
Protection——
Price——
IP67
Dust-tight, and watertight 1 m under water for 30 minutes. Third-party certified for Protector, Air, Storm and Micro.
IP54
Dust-protected and splash resistant from any direction. Not for going under water.
Weather resistant
Keeps out rain and dust. No IP rating, and not for going under water.
DEF STAN 81-41
The UK Ministry of Defence standard for packaging military equipment.
MIL-STD-810H
US Department of Defense tests for heat, cold, drops and vibration. Storm passes a 26-point drop test at extreme temperatures.
Large Pelican Protector transport cases lifted by a forklift

Protector

When you want the original.

The benchmark case, in the widest choice of sizes.

IP rating
IP67
Temperature
−40°C to 88°C
Warranty
Limited lifetime

Protection Price

Shop all ProtectorSee every size
Bow hunter with an open Pelican Air 1745 Bow case

Air

When every gram counts.

Up to 40% lighter, with the same IP67 seal.

IP rating
IP67
Temperature
−18°C to 60°C
Warranty
Limited lifetime

Protection Price

Shop all AirSee every size
Soldier opening a Pelican Storm case in the field

Storm

When you need military grade.

Press & Pull latches, Vortex valve and MIL-STD-810H drop testing.

IP rating
IP67
Temperature
−29°C to 60°C
Warranty
Limited lifetime

Protection Price

Shop all StormSee every size
Stack of Pelican Vault cases outdoors

Vault

Real protection without the flagship price.

Splash resistant, 3-year warranty, lowest price in the lineup.

IP rating
IP54
Temperature
−18°C to 60°C
Warranty
3-year limited

Protection Price

Shop all VaultSee every size

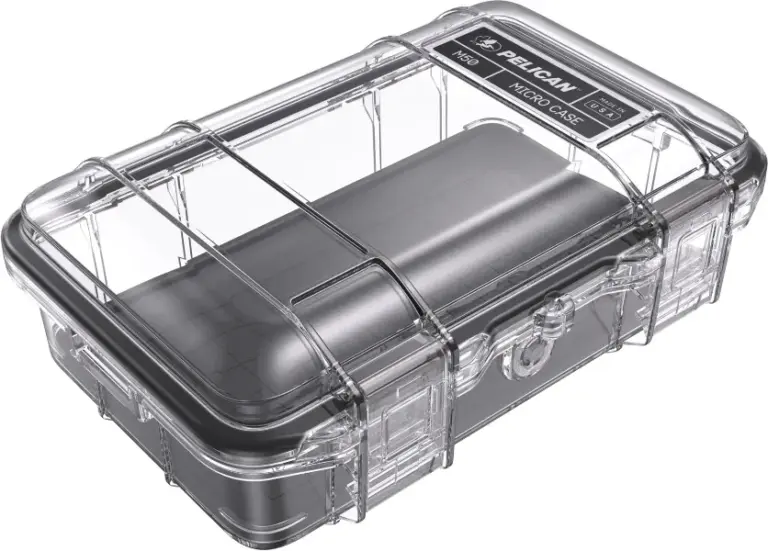

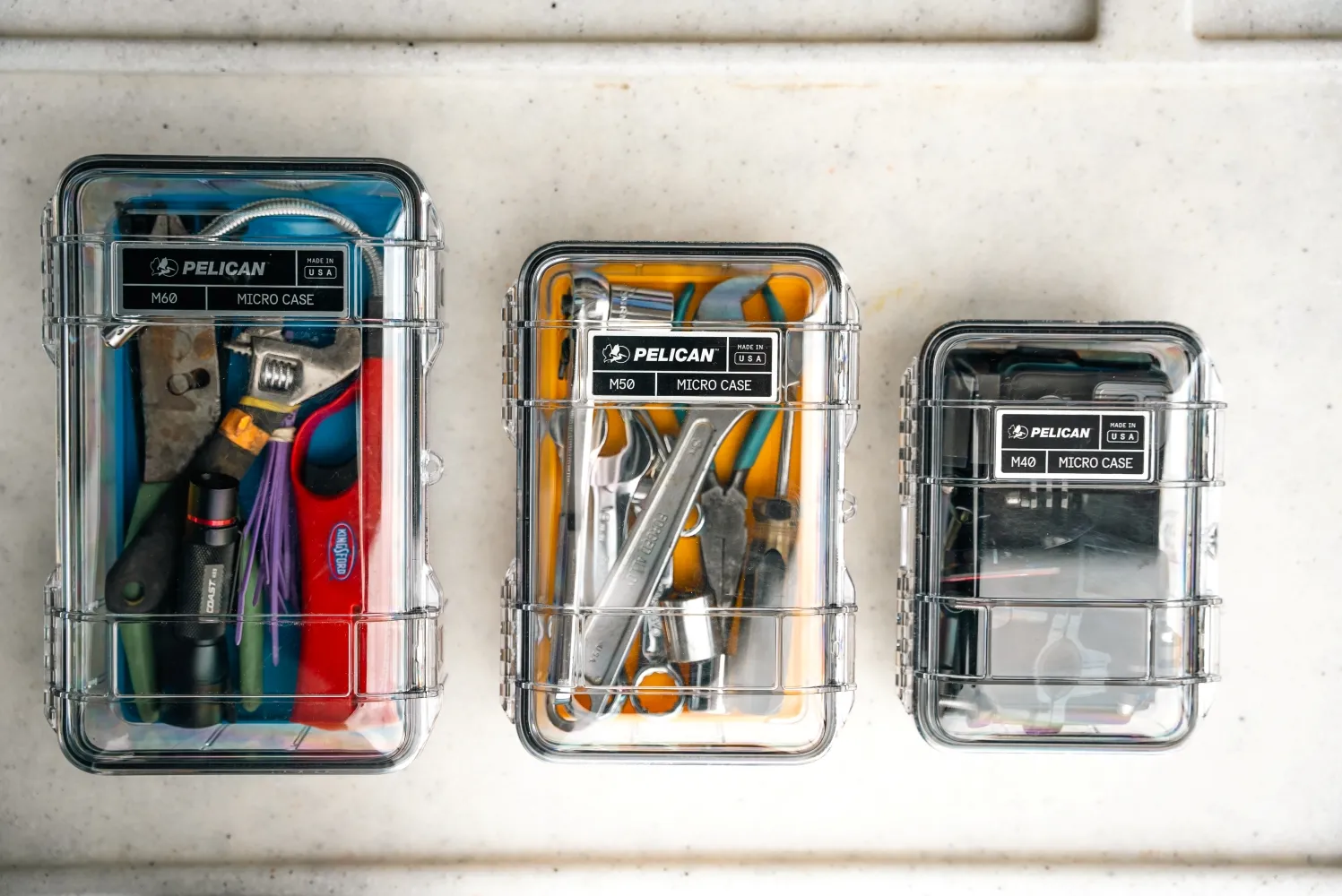

Pelican M40, M50 and M60 Micro cases holding small tools

Micro

Full Pelican protection, pocket size.

IP67 pocket cases for phones, cards and small tools.

IP rating
IP67
Temperature
−23°C to 93°C
Warranty
Limited lifetime
Shop all MicroSee every size
Pelican Cargo case mounted on a 4WD in a forest

Cargo

Storage that rides on the vehicle.

Locks into roof, cross-bed or saddle mounts. No drilling.

IP rating
Weather resistant
Temperature
−29°C to 60°C
Warranty
Limited lifetime
Shop all CargoSee every size

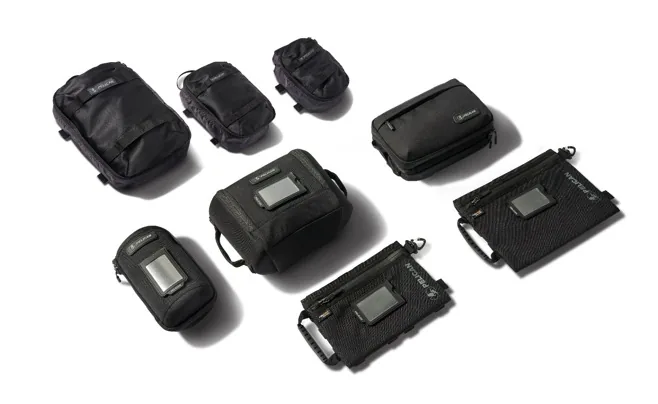

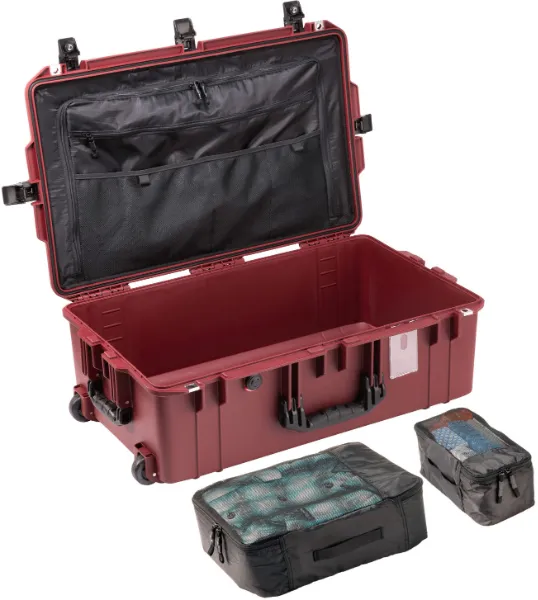

The travel lineup

Luggage, bags and packing cubes from Pelican. Protection and price are Pelican's scores out of 5.

What seals a Pelican case

Shown on a Protector 1650. Air and Storm cases have an O-ring seal and pressure valve too, with Press & Pull latches in place of double-throw.

Pelican 1650 Protector case with its features numbered
  1. O-ring sealA tongue-and-groove lid presses onto a polymer O-ring. This is what makes it watertight.
  2. Double-throw latchesA second pry-bar movement starts the release, so a light pull opens them.
  3. Pressure valveLets air out after a flight or a climb so the lid still opens, and keeps water out.
  4. Padlock protectorsStainless steel reinforcement around the padlock holes.
  5. Fold-down handlesDouble-layer soft-grip handles that sit flat when not in use.
  6. WheelsPolyurethane tyres on stainless steel ball bearings. Wheeled models only.
  7. Trolley handleRetractable extension handle. Wheeled models only.

Pelican lab-tests its cases for drop, impact, vibration, pressure, compression, tensile strength, heat and cold, immersion, rain and leaks. Each listing shows the certifications that case carries.

Before you buy

Protector or Air?

Both are IP67 with a lifetime warranty. Air is up to 40% lighter and costs a little less. Protector scores higher on protection in Pelican's own ratings, comes in more sizes, and handles a wider temperature range: −40°C to 88°C against Air's −18°C to 60°C.

Protector or Storm?

Same IP67 seal and lifetime warranty. Storm costs more for its hardware: Press & Pull latches you can open one-handed, the Vortex pressure valve, and MIL-STD-810H drop testing at extreme temperatures.

Are Pelican cases waterproof?

Protector, Air, Storm and Micro are IP67, certified by a third party: dustproof, and watertight 1 m under water for 30 minutes, when closed on an undamaged O-ring. Vault is IP54: dust-protected and splash resistant from any direction, but not for going under water. Cargo cases are weather resistant and dustproof.

Which Pelican cases are carry-on size?

The Protector 1510, Air 1535 and Storm iM2500 are built to common carry-on sizes, and ATX comes as the HC22 carry-on. Airline limits vary, so check yours before you fly. Carry-on cases

Which cases fit a rifle, bow or tripod?

Long cases come in Protector (1700 to 1780), Air (1705, 1745, 1755 and the 1745 Bow), Storm (iM3100 to iM3410) and Vault (V700 to V800). Protector and Storm long cases come empty or with solid foam, not Pick N Pluck. Gun cases

What holds a phone, keys or memory cards?

Micro cases run from the pocket-size 1010 through the 1015, 1020 and 1030 to the M40, M50 and M60. The memory card cases hold SD, CF or CFexpress cards. Micro cases

What about tools and first aid kits?

The 0450 Mobile Tool Chest rolls on wheels, with 4 shallow and 2 deep drawers, or 6 shallow and 1 deep. EMS cases come with trays set up for first aid kits. Tool chests EMS cases

What does the warranty cover?

Pelican guarantees Protector, Air, Storm and Micro cases for life against breakage and defects in workmanship. Vault has a 3-year limited warranty, Aegis bags 5 years, and ATX luggage lifetime. Cargo cases are covered for life too, and their mounts for 3 years. The warranty covers the case, not what's inside it or the foam.

Picked a range? Now find the size.

Enter your gear's measurements to see which cases fit it, or tell us what's going inside and we'll size it for you.

Find a case that fitsAsk us
