Pelican

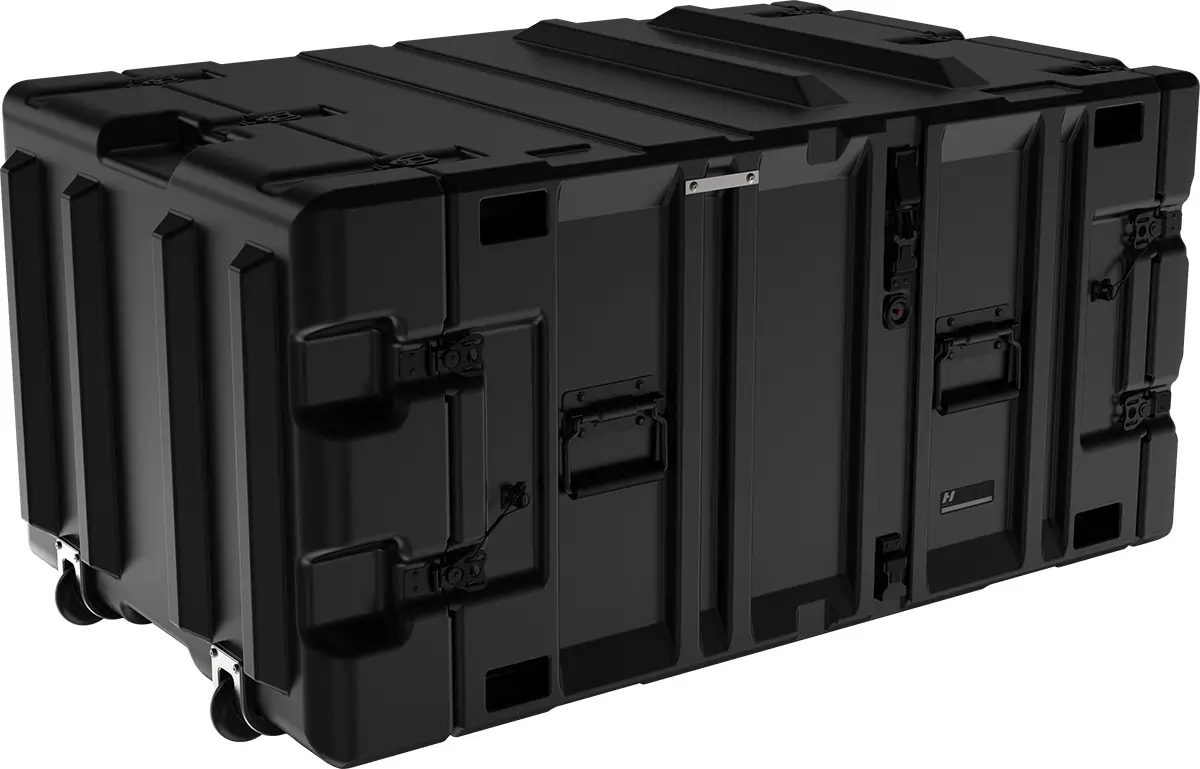

Pelican Classic-V 7U Rack Mount Case
Exterior (L×W×D): 116.3 x 68.6 x 52.3 cm
Rack Height: 31.1 cm
Rack Depth: 83.8 cm
Interior Lid Depth: 6.4 cm
Interior Back Lid Depth: 13.3 cm
Weight: 29.5 kg

$3,954.95

In Stock at Supplier (ships 3-5 days)

Quick Quote

Enter your postcode or suburb to generate your quote.



📦 Additional Shipping Options may be available at Checkout
SKU: VC7U Categories: ,

V-Series cases utilize a full-boxed 19″ steel rack with an industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.

  • Available in 3U, 4U, 5U, 7U, and 9U
  • Engineered to provide secure transport for rack mountable electronics
  • Equipment payload weight ranges for 3U – 5U = 80-100 lbs. (36-45 kg) per case
  • Equipment payload weight ranges for 7U – 9U = 100-170 lbs. (45-77 kg) per case
  • Black case with Anti-Reflective zinc cobalt black (HCB) catch-and-strike hardware
  • 2 Lockable Cable Catches per lid to provide security for your equipment
  • Lid hangers for lid storage while in use
  • Molded stacking ribs and coupling catches to secure cases when stacked

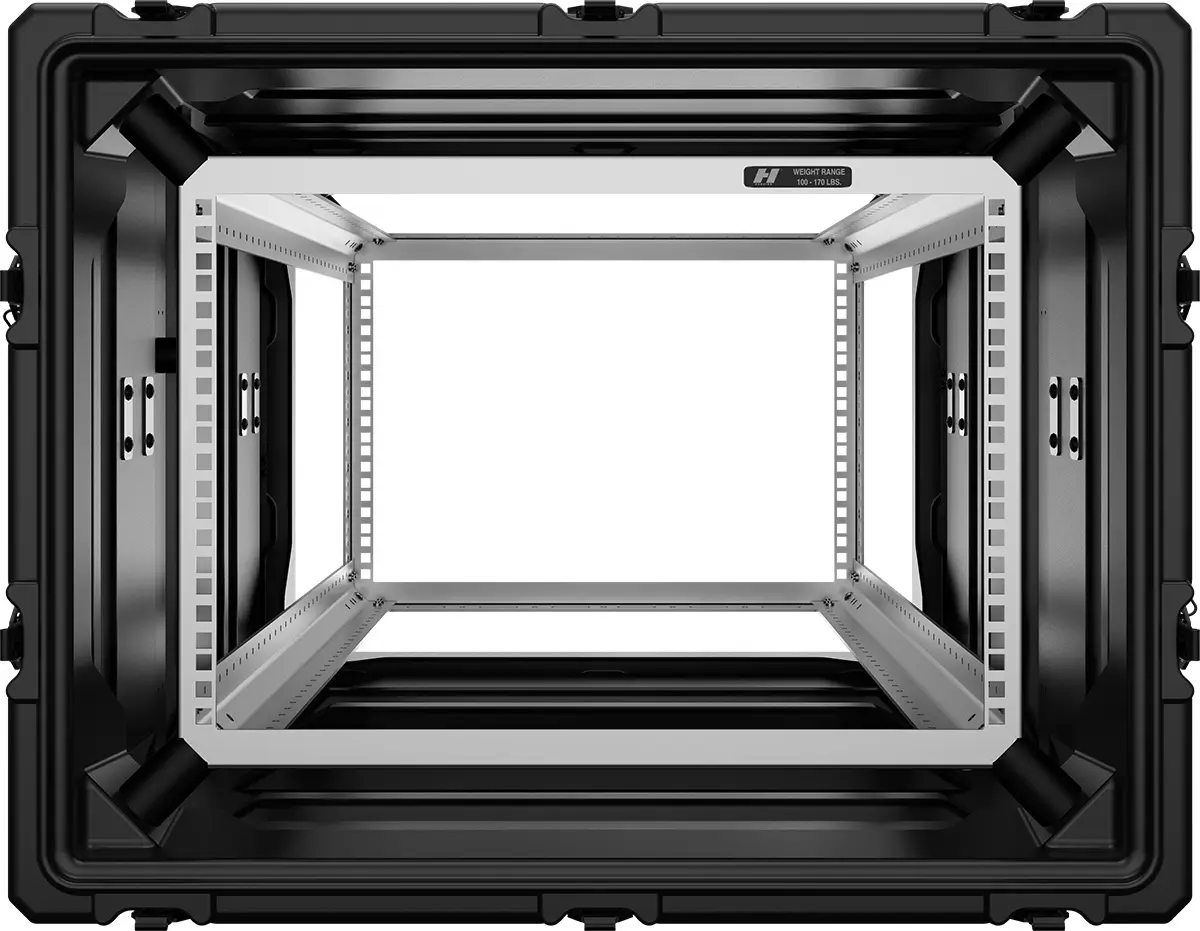

  • 19″ (48 cm) wide, 33″ (83 cm) deep fixed square hole frame for universal equipment fit
  • Sealed gasket and PRV keeps container watertight and eliminates over pressurization
  • 2 edge casters on 5″ lid
  • Black stainless steel handles, and 1 comfort grip plastic handle on the 2″ lid for rolling the case
  • Choice of SAE 10-32 or Metric M6 clip nuts
  • RoHs compliant
Body Material

RotoMolded Polyethylene

O-Ring Material

Silicone Sponge

Purge Body Material

Aluminum

Hardware Material

Stainless Steel (Black Oxide) / RoHs Nickel Black

Frame Material

Steel (Clear Coated)
