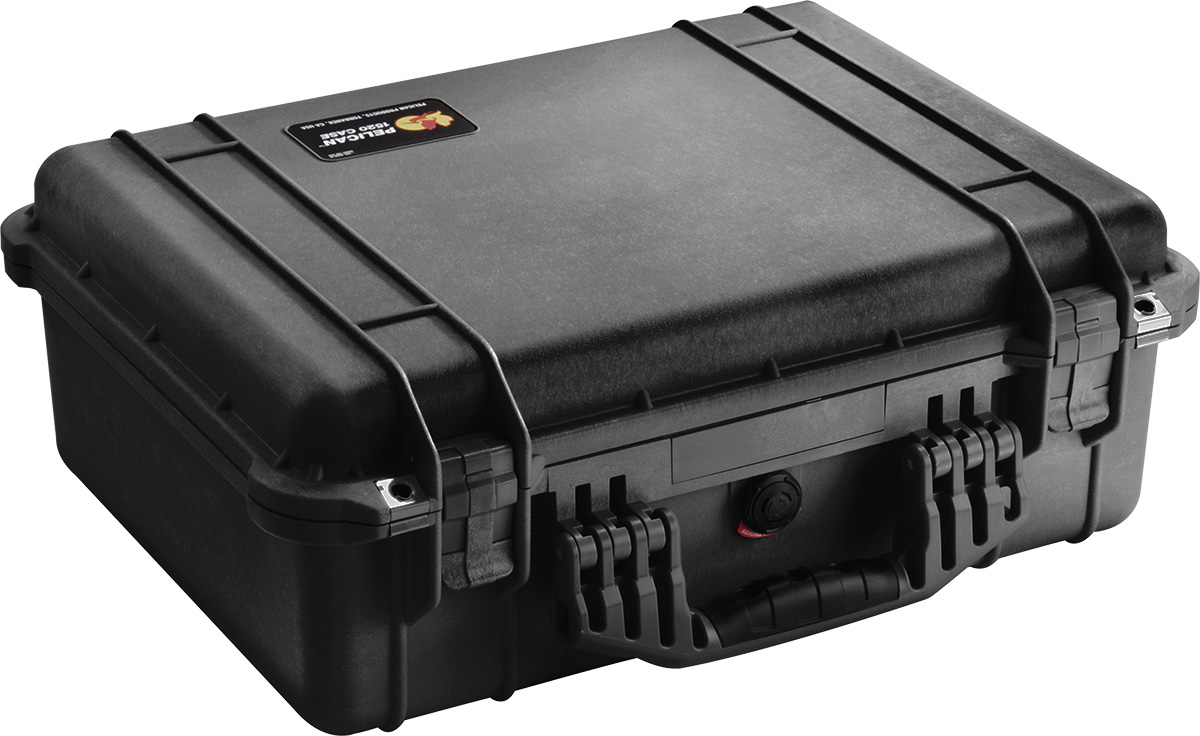

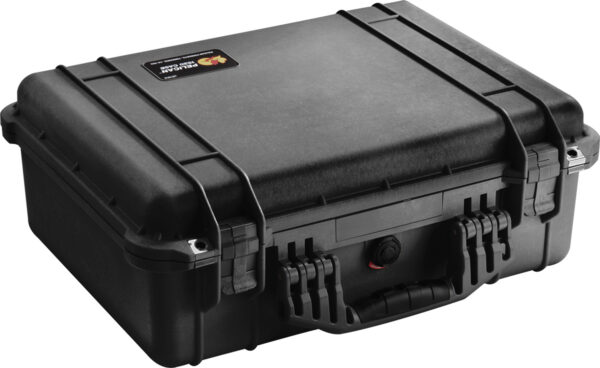

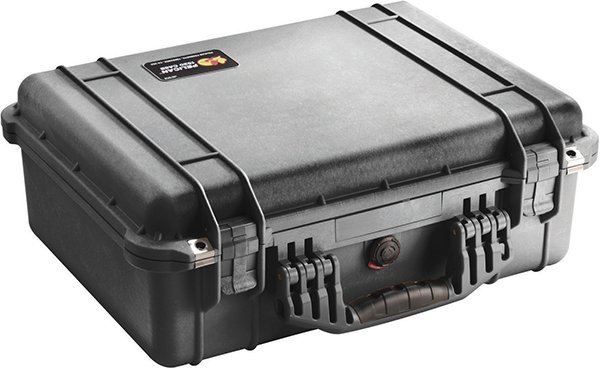

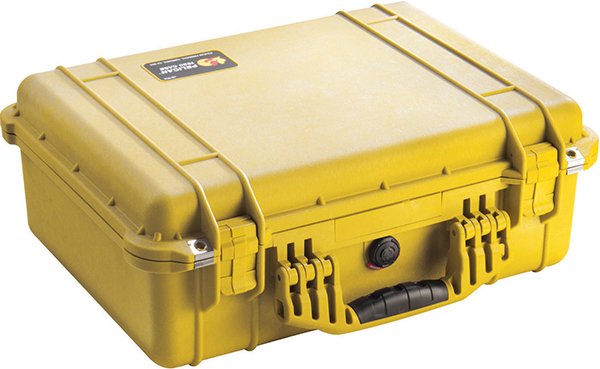

Pelican 1520 Protector Case

Pelican 1520 Protector Casecase_1520_1.jpgpel_1520_open_blk_low_1.jpgpelican_1520_000_110_1520_case_with_foam_70626-scaled-1.jpgpelican-1520-yellow-dustproof-case.jpgpelican_1520_407_000_1527_convertible_travel_bag_89407_1-scaled-1.jpg1526y.jpgpelican_1520_407_000_1527_convertible_travel_bag_89407-scaled-1.jpgSAMSUNG DIGITAL CAMERApel_1520_cloased_blk_low_4.jpgcase_1520blk_dividers.jpgpel_1520_cloased_blk_low_3.jpgpelican_1520_000_240_1520_case_with_foam_103635-scaled-1.jpgpel_1520_closed_ylw_low_2.jpgpelican_1520_000_180_1520_case_with_foam_70627-scaled-1.jpgpel_1520_closed_silv_low_2.jpgpelican_1520_000_150_1520_case_with_foam_70628-scaled-1.jpgpel_1520_closed_or_low_2.jpgpel_1520_cloased_blk_low_2.jpgSAMSUNG DIGITAL CAMERApelican-1520-silver-protector-case.jpgSAMSUNG DIGITAL CAMERApelican-1520-orange-watertight-case.jpgSAMSUNG DIGITAL CAMERASAMSUNG DIGITAL CAMERApel_1520_cloased_blk_low_1.jpg
$343.96 – $599.95Save Up to 20%

A mid-size, hand-carried Protector case between the 1500 and the 1550.

  • Interior: 45.9 x 32.7 x 17.1 cm
  • Exterior: 50.2 x 40.1 x 18.8 cm
  • Depth: lid 4.6 cm, base 12.5 cm
  • Weight: 3.8 kg empty, 4.2 kg with foam

Insert: Choose

Colour: Choose

Pelican 1520 Protector Case
$343.96 – $599.95
Pelican Marine Waterproof Floating Pouch XL

Free Marine Waterproof Floating Pouch XL on orders over $600

Delivery

Choose your options above for a delivery price.

Will it fit?Inside 459 × 327 × 171 mm

Will it fit? Check your gear before you buy.

Pack one item or a whole kit, then see it in 3D. Inside this case: 459 × 327 × 171 mm

Try Will It Fit
Features

Features of the Pelican 1520 Protector Case

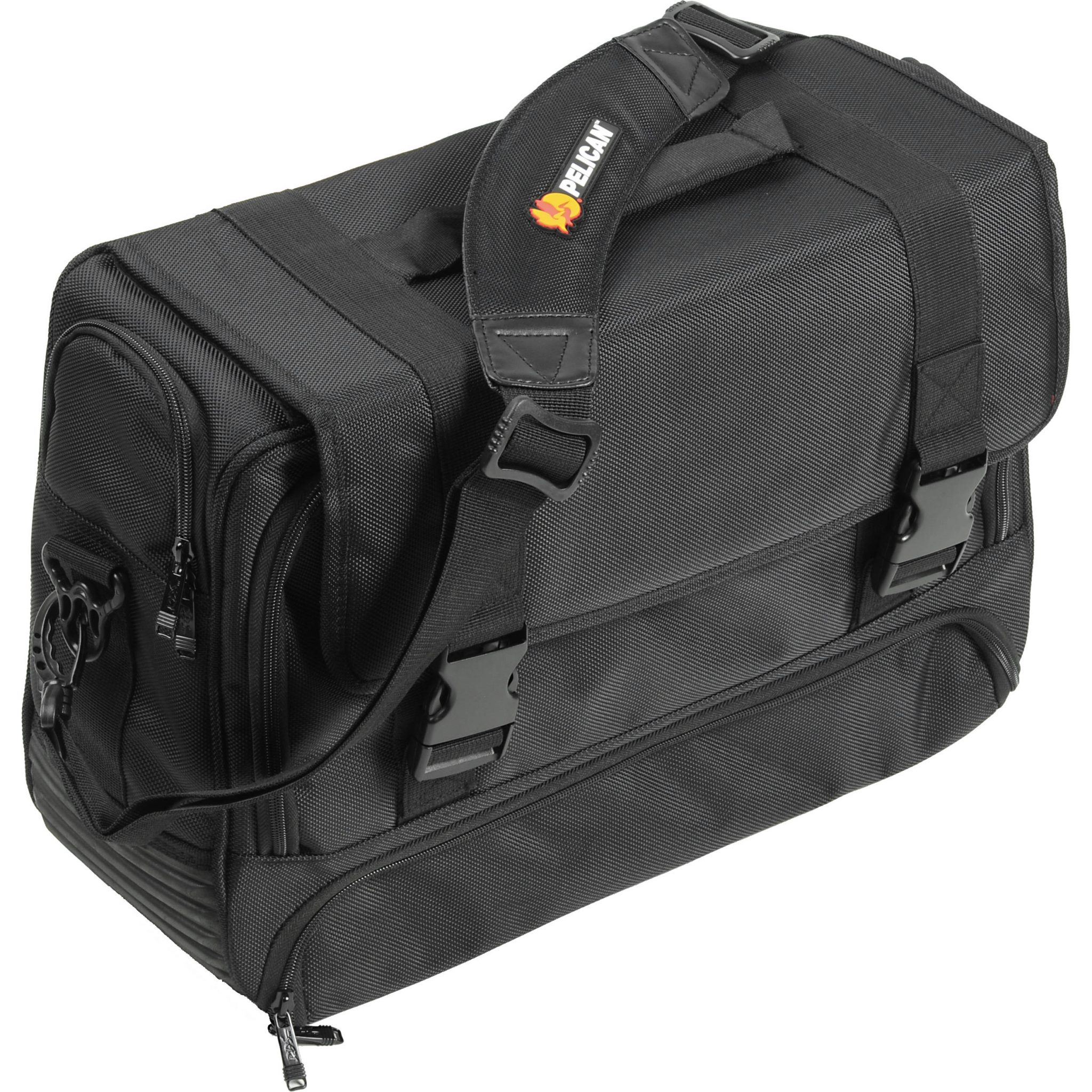

The 1520 is 45.9 x 32.7 x 17.1 cm inside and weighs 3.8 kg empty. It sits between the 1500 and the 1550 in size, for camera kits, drones and tools. One option adds the 1527 Convertible Travel Bag.

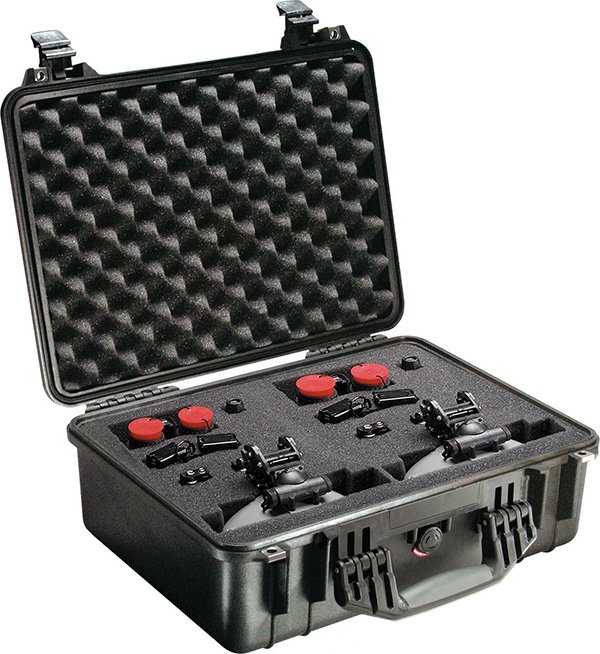

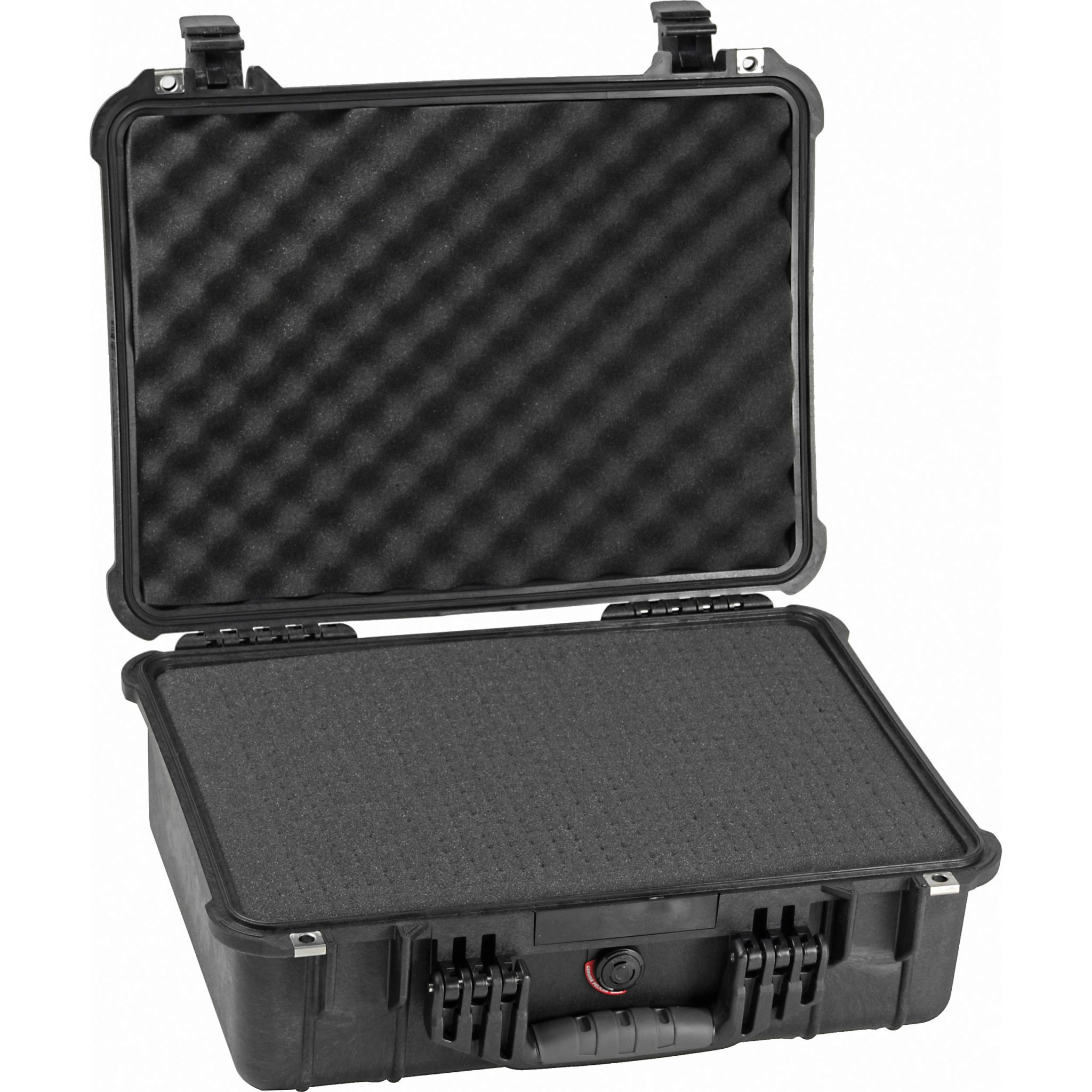

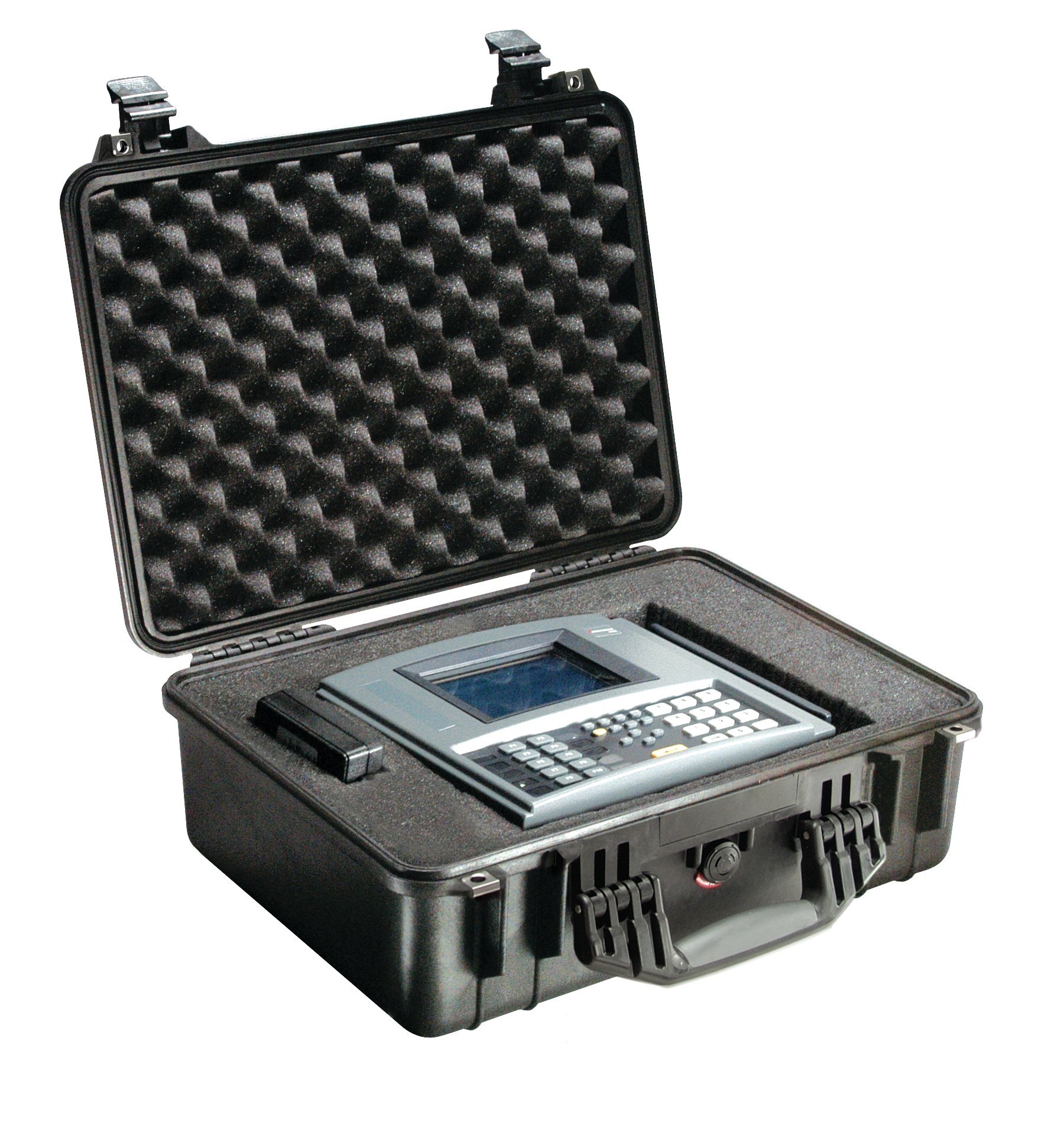

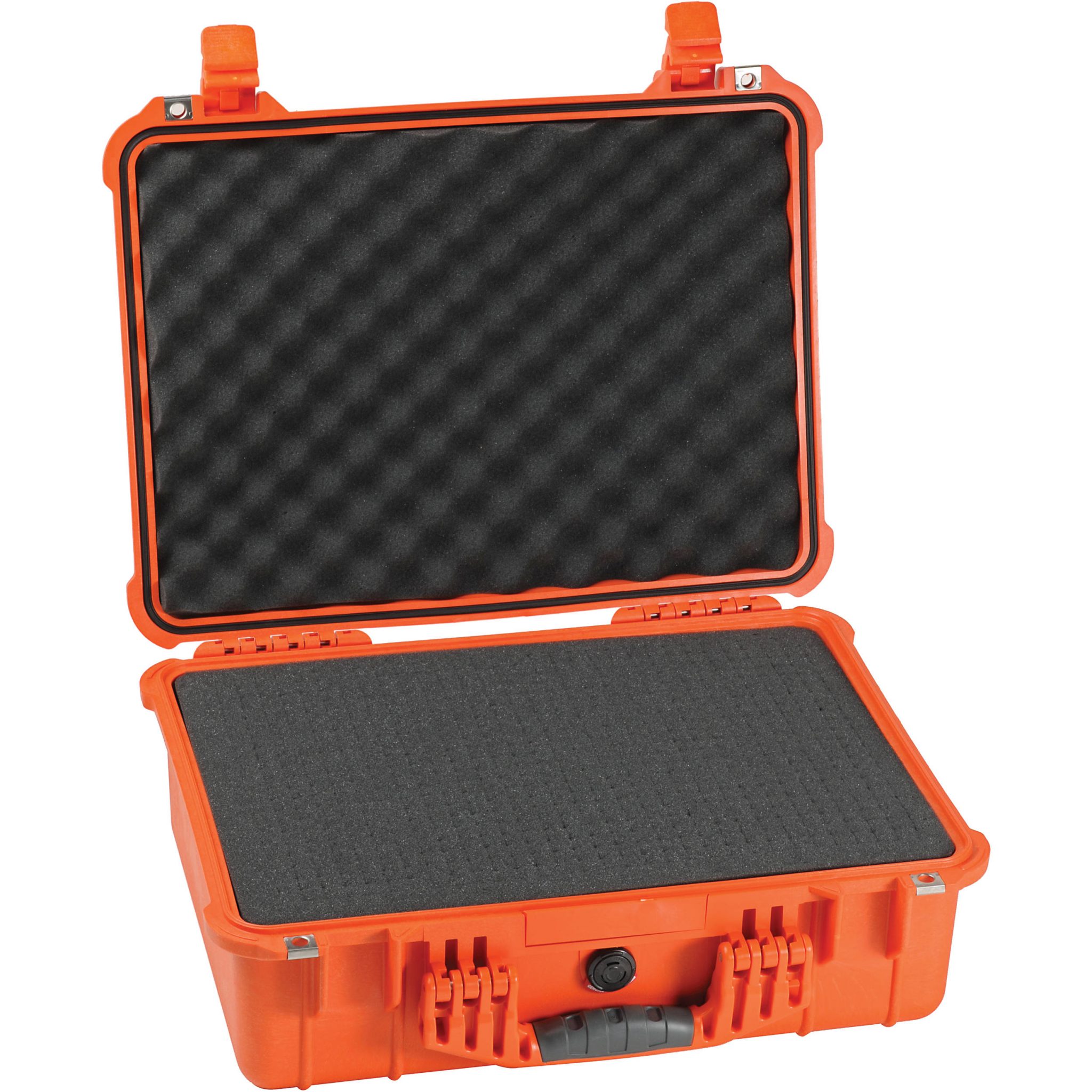

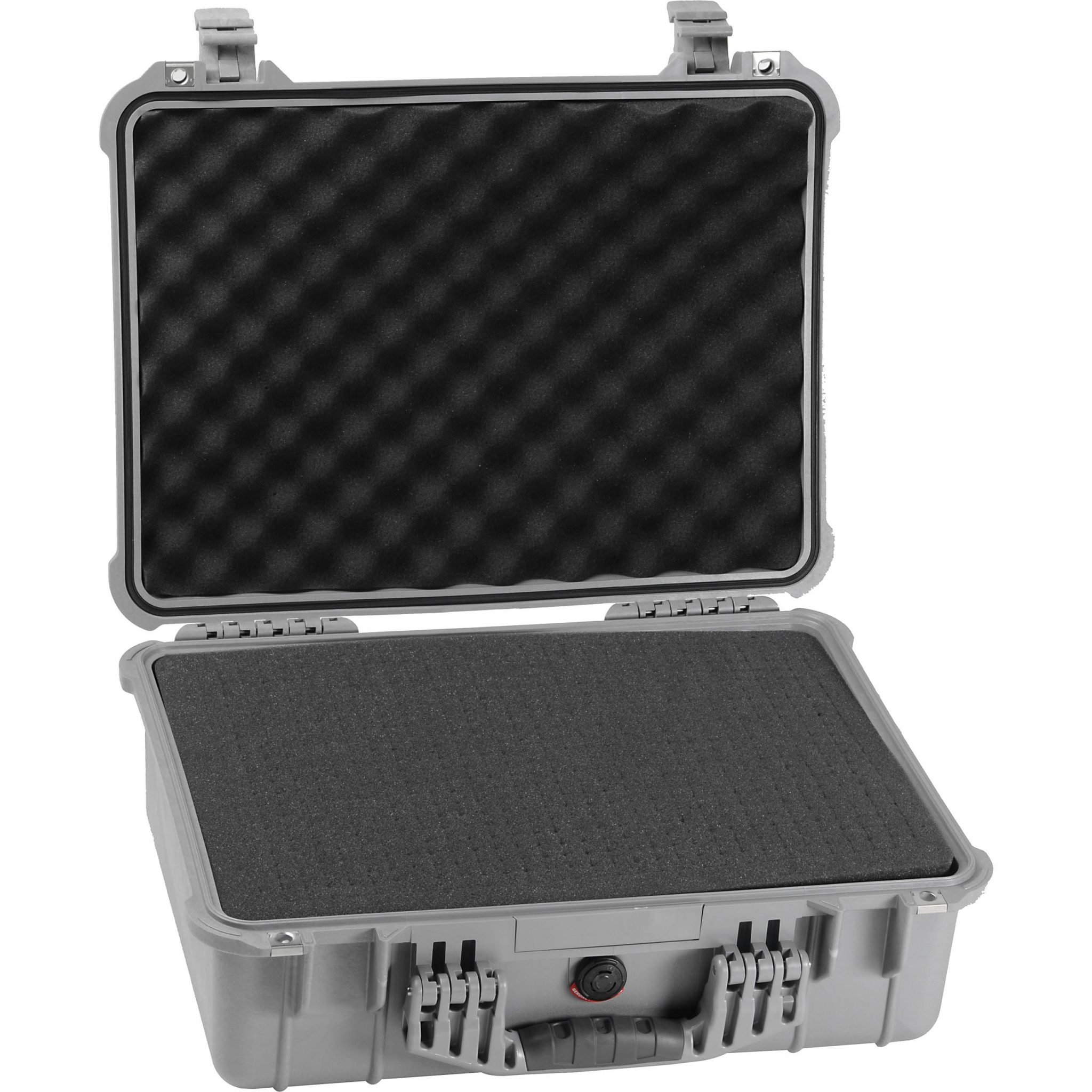

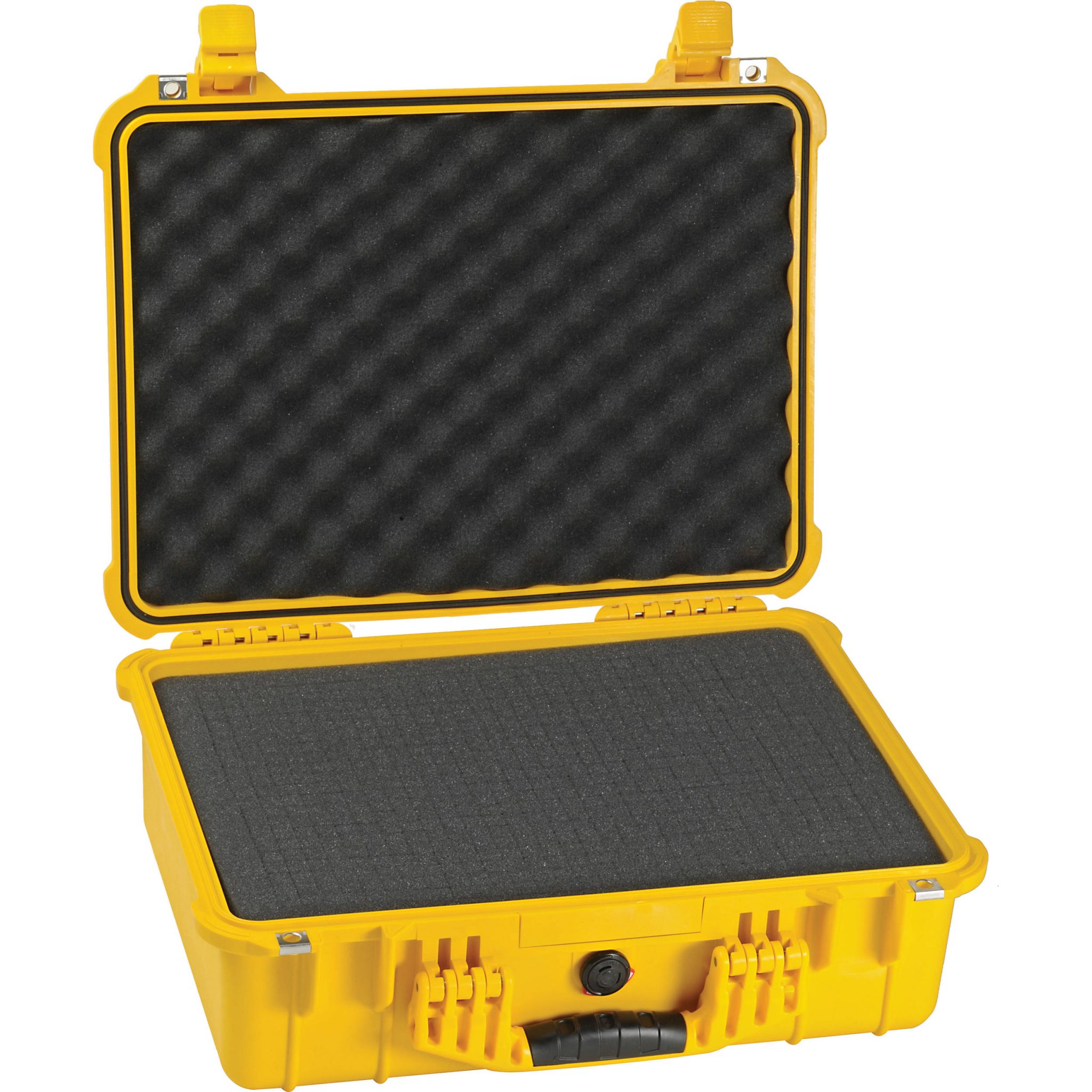

  • Pick N Pluck foam with convoluted lid foam
  • Watertight, crushproof and dustproof
  • Open cell core with solid wall design, strong and light
  • Rubber overmoulded handle
  • Easy-open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalisation valve
  • O-ring seal

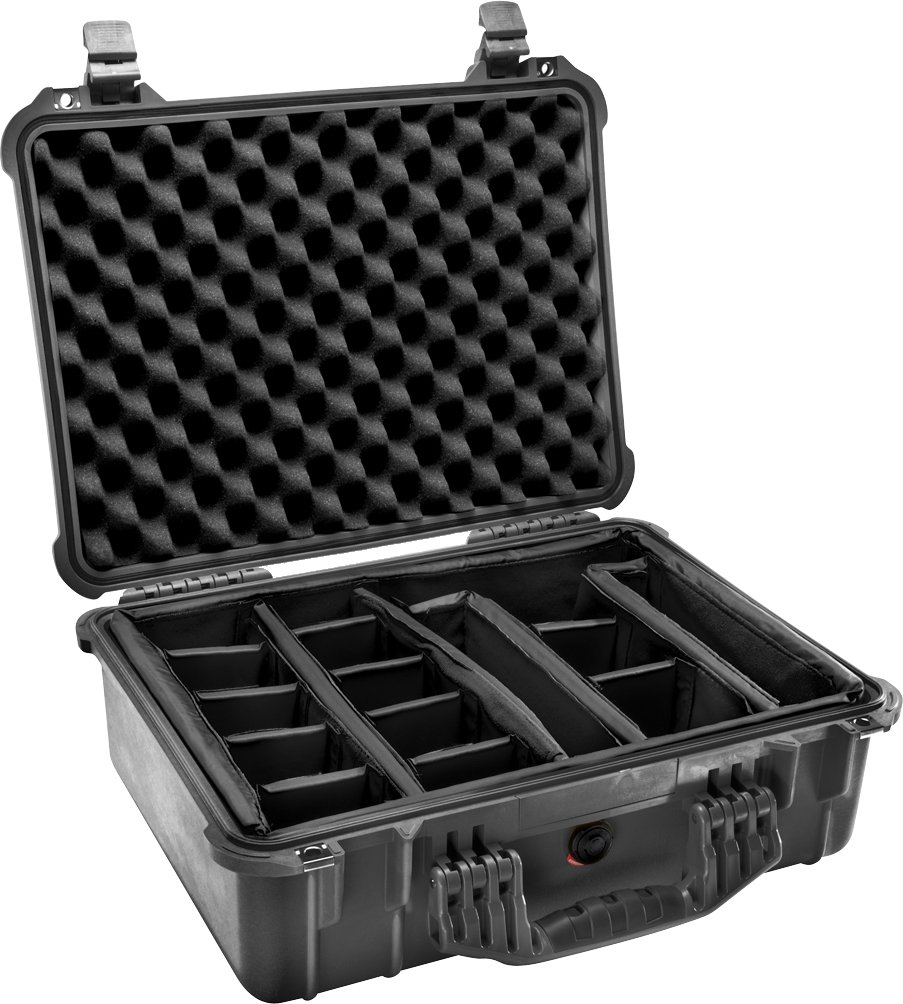

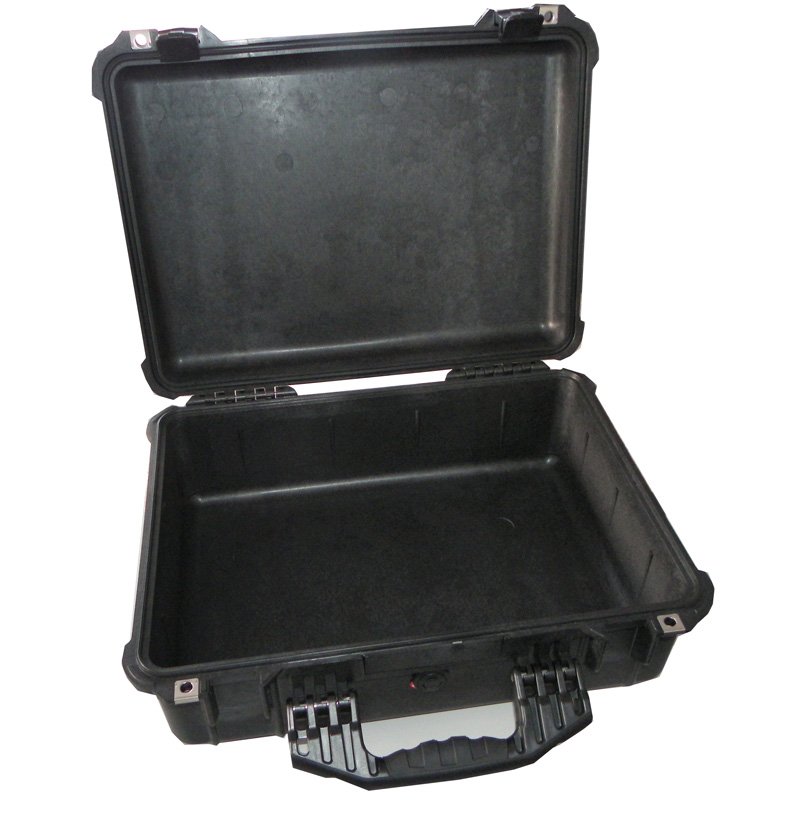

  • Available with padded dividers, Pick N Pluck foam or no foam
  • Made in the USA
  • Pelican limited lifetime warranty
Specifications

Specifications

Certifications
IP67 / Def Stan 81-41
Lid Depth
4.5 cm1.79"
Bottom Depth
12.5 cm4.93"
Total Depth
17.1 cm6.72"
Body Material
Polypropylene
Padlock Hole Diameter
8 mm5/16"
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
Minimum Temperature
-40°C-40°F
Maximum Temperature
87°C190°F
Warranty
Limited Lifetime
