Pelican 1630 Protector Transport Case

pelican-tough-rolling-equipment-hard-casepelican-1630-desert-tan-large-rugged-casepelican-1630-rolling-protective-hard-shell-case.jpgpelican-strongest-watertight-rolling-weapon-case.jpgpelican-strong-rolling-tactical-hard-shell-case.jpg1630blk_dividers_high_1_.jpgpel_1630_closed_blk_low_3.jpgpelican-1630-desert-water-tight-rolling-casepelican_1630_000_190_1630_case_with_foam_475028.jpgpel_1630_closed_dt_low_1.jpgpel_1630_closed_blk_low_2.jpgpel_1620_closed_dt_low_4.jpgSAMSUNG DIGITAL CAMERASAMSUNG DIGITAL CAMERApel_1630_closed_blk_low_1.jpg
$923.96 – $1,199.96Save Up to 20%

A stackable transport case on four wheels.

  • Interior: 70.4 x 53.3 x 39.4 cm
  • Exterior: 79.5 x 61.5 x 44.4 cm
  • Depth: lid 8.3 cm, base 30.8 cm
  • Weight: 14.1 kg empty, 16.3 kg with foam

Insert: Choose

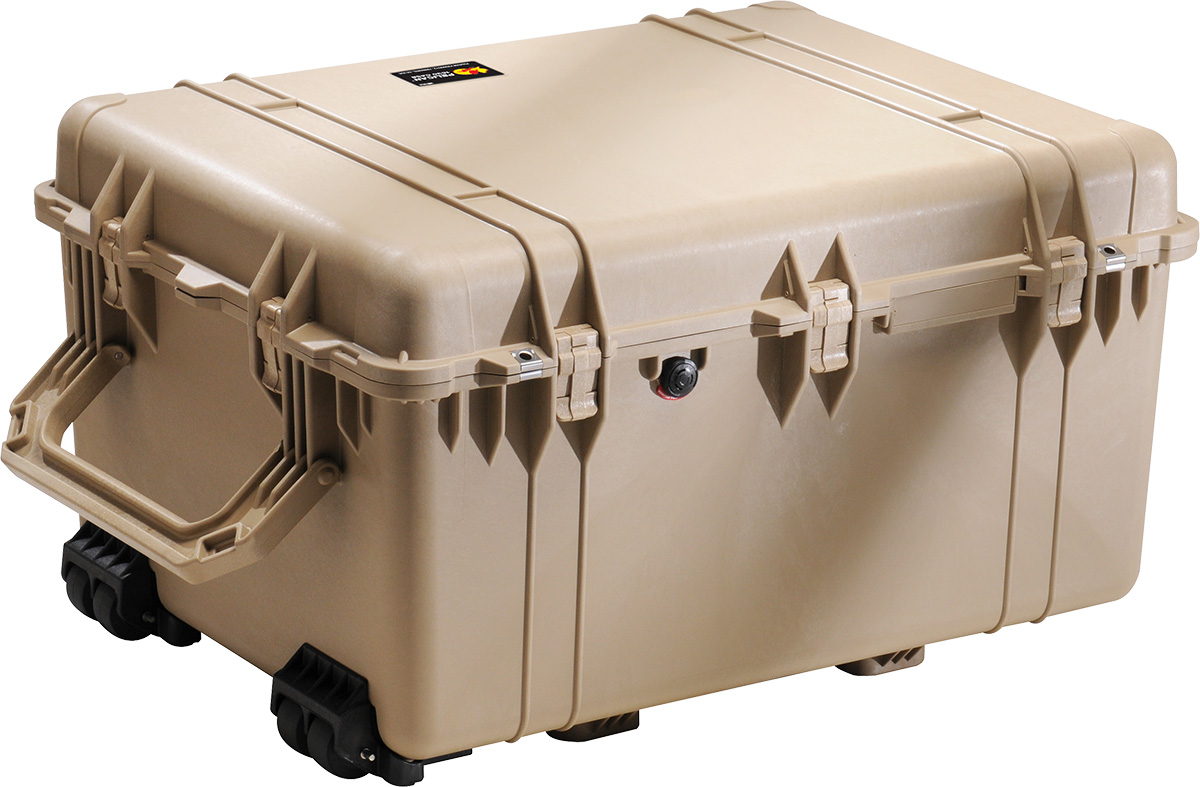

Colour: Choose

Pelican 1630 Protector Transport Case
$923.96 – $1,199.96
Pelican Marine Waterproof Floating Pouch XL

Free Marine Waterproof Floating Pouch XL with this case

Delivery

Choose your options above for a delivery price.

Will it fit?Inside 704 × 533 × 394 mm

Will it fit? Check your gear before you buy.

Pack one item or a whole kit, then see it in 3D. Inside this case: 704 × 533 × 394 mm

Try Will It Fit
Features

Features of the Pelican 1630 Protector Transport Case

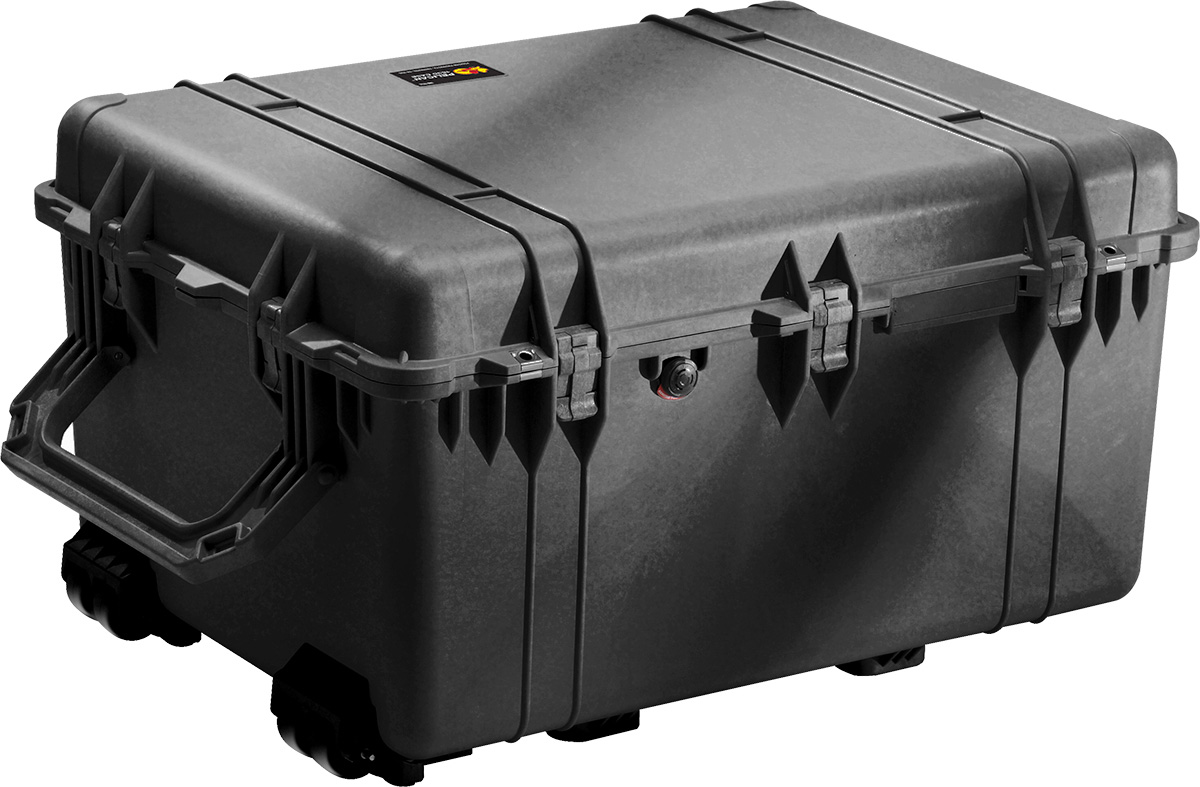

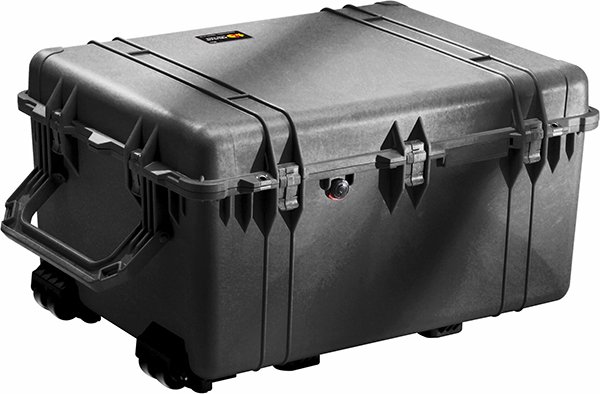

The 1630 is a transport case on four wheels: 70.4 x 53.3 x 39.4 cm inside, stackable, with reinforced corners. It moves lighting, audio and broadcast equipment or bulky field kit.

  • Four polyurethane wheels with stainless steel bearings
  • Stackable
  • Watertight, crushproof and dustproof
  • Reinforced corners
  • Open cell core with solid wall design, strong and light

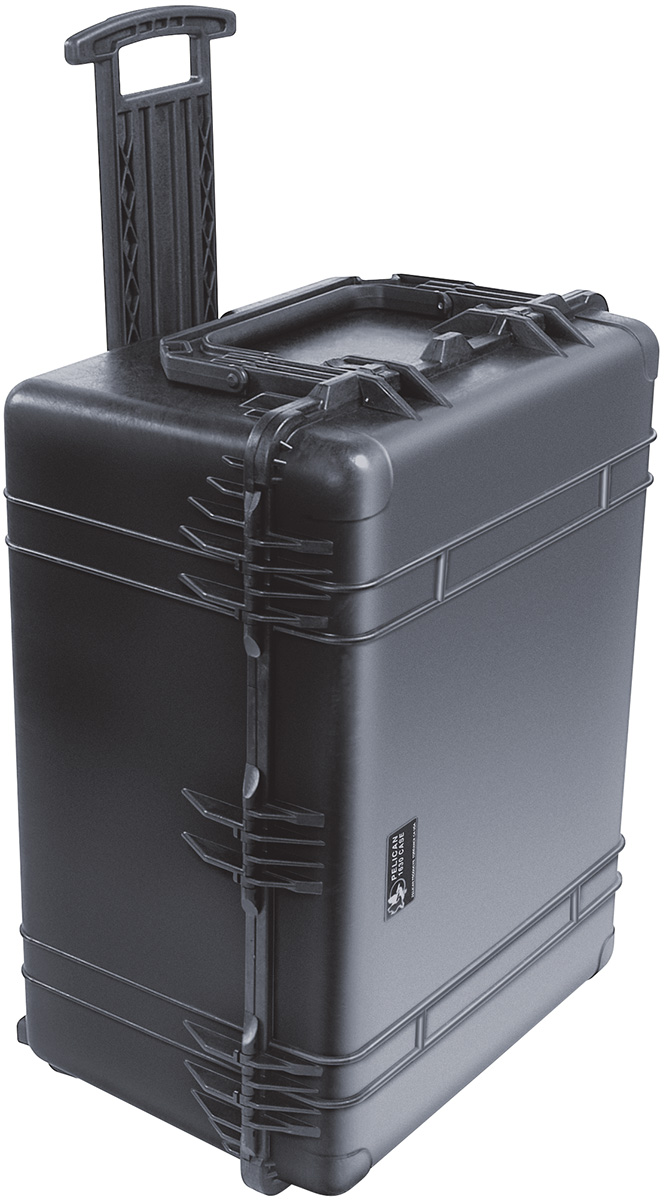

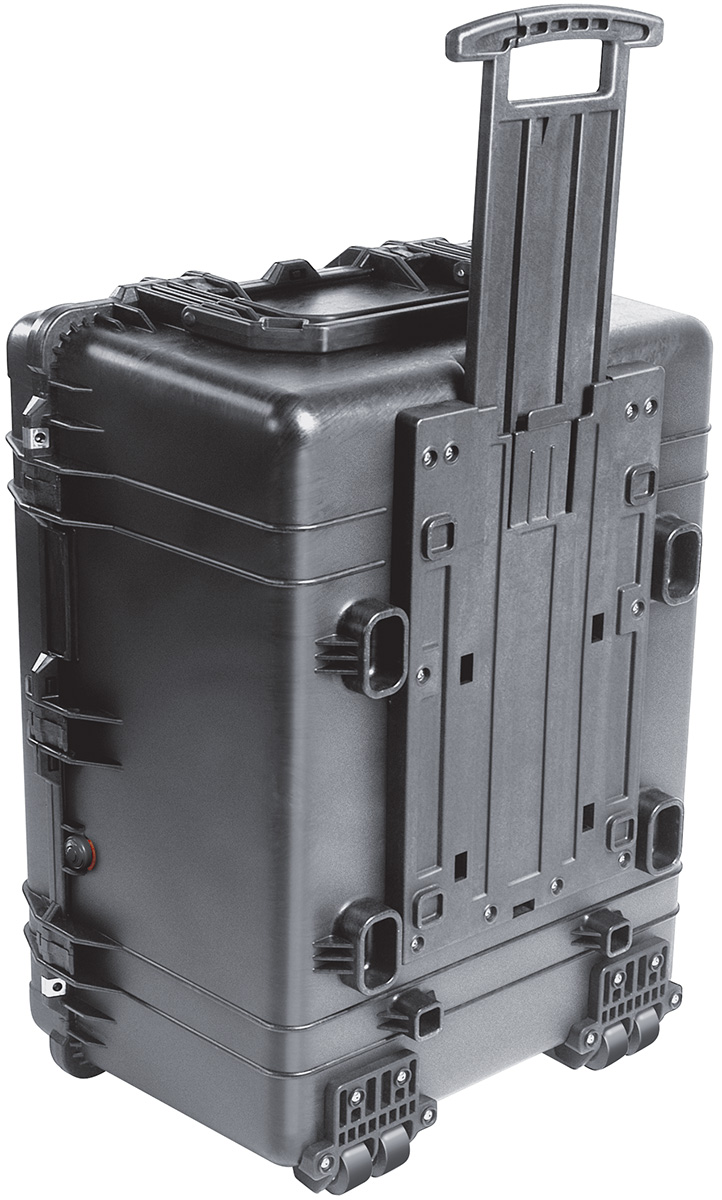

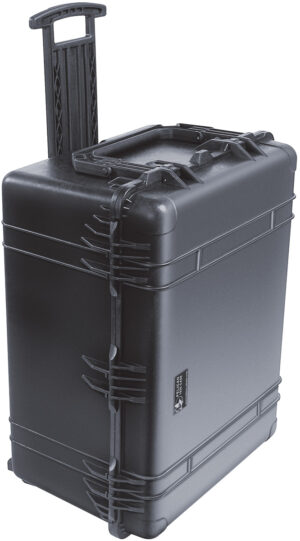

  • Retractable trolley handle

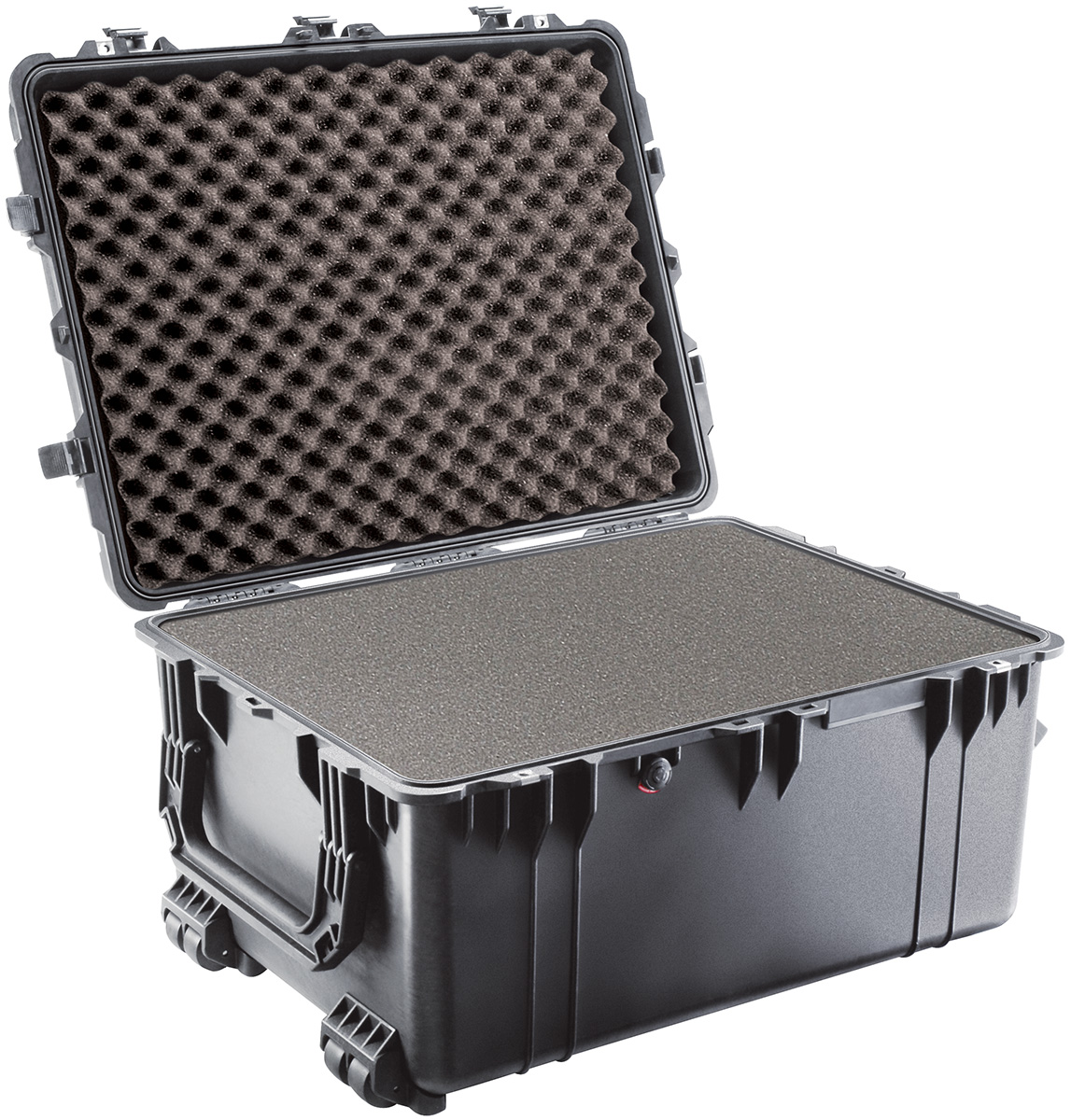

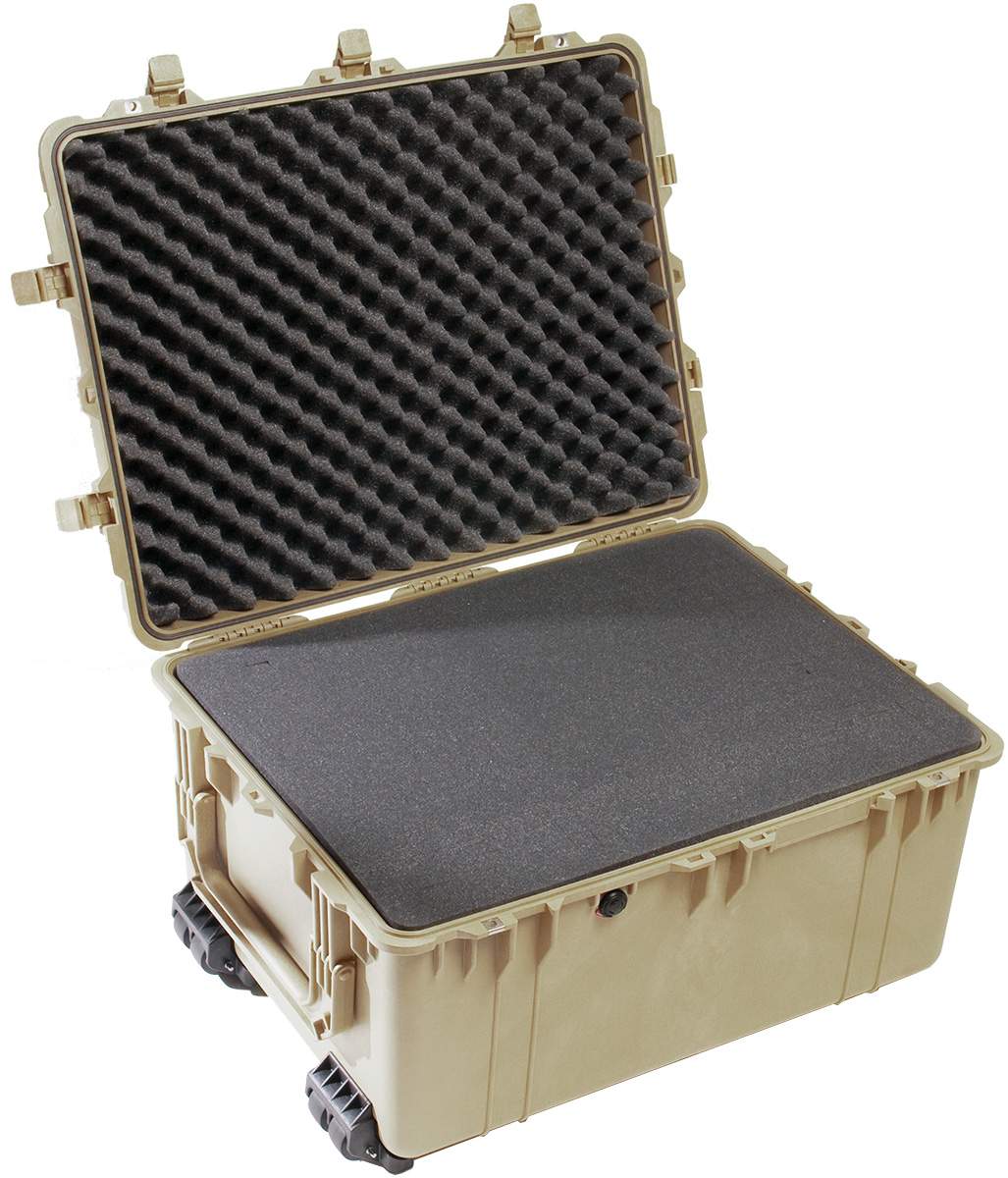

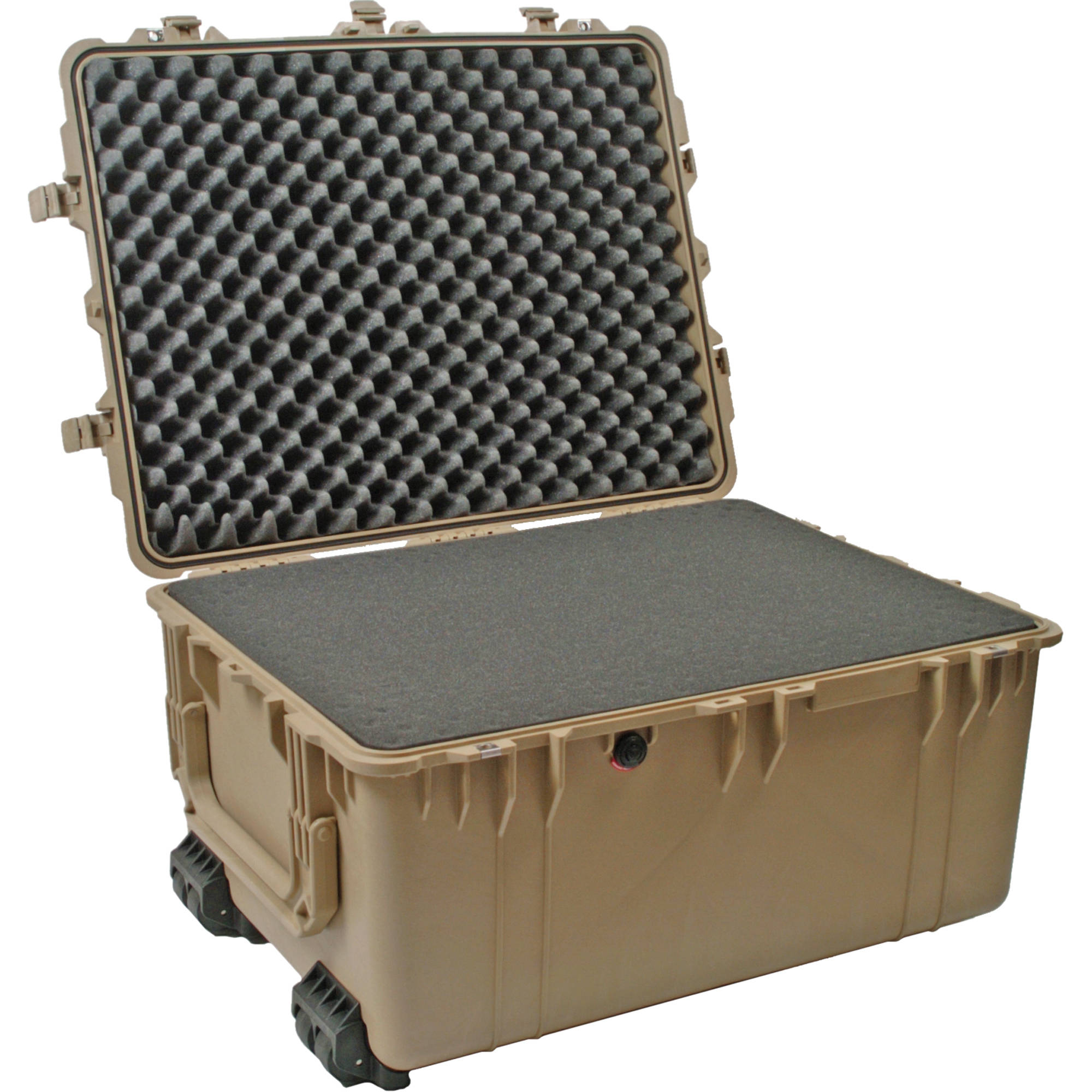

  • 3-layer Pick N Pluck foam with convoluted lid foam
  • Fold-down handles
  • Easy-open double-throw latches
  • Stainless steel padlock protectors
  • Automatic pressure equalisation valve
  • O-ring seal

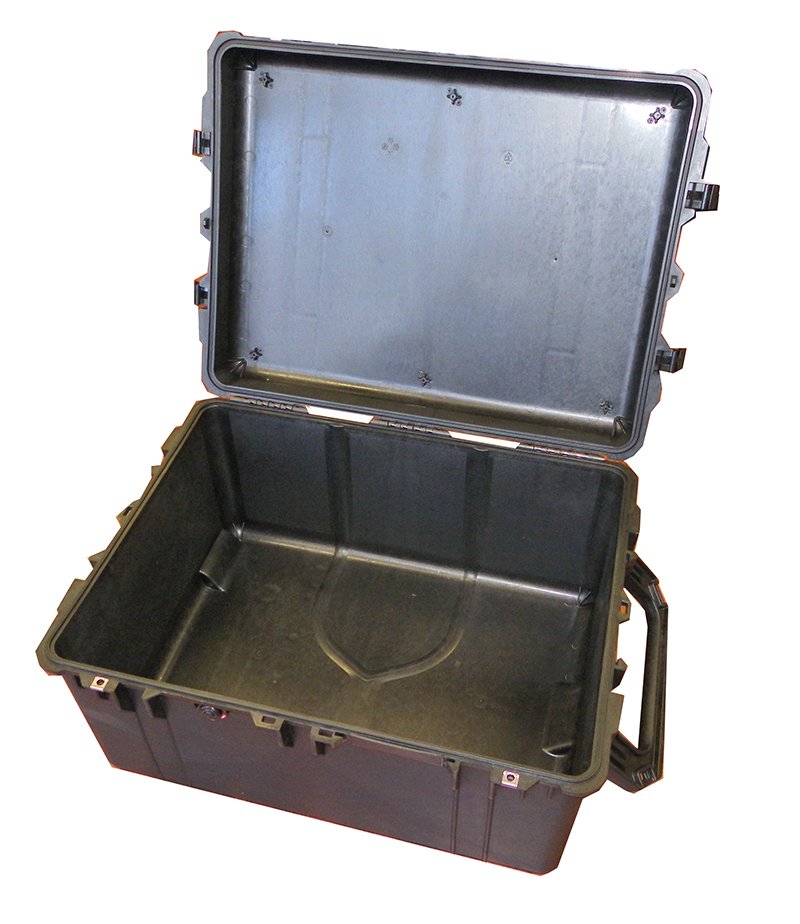

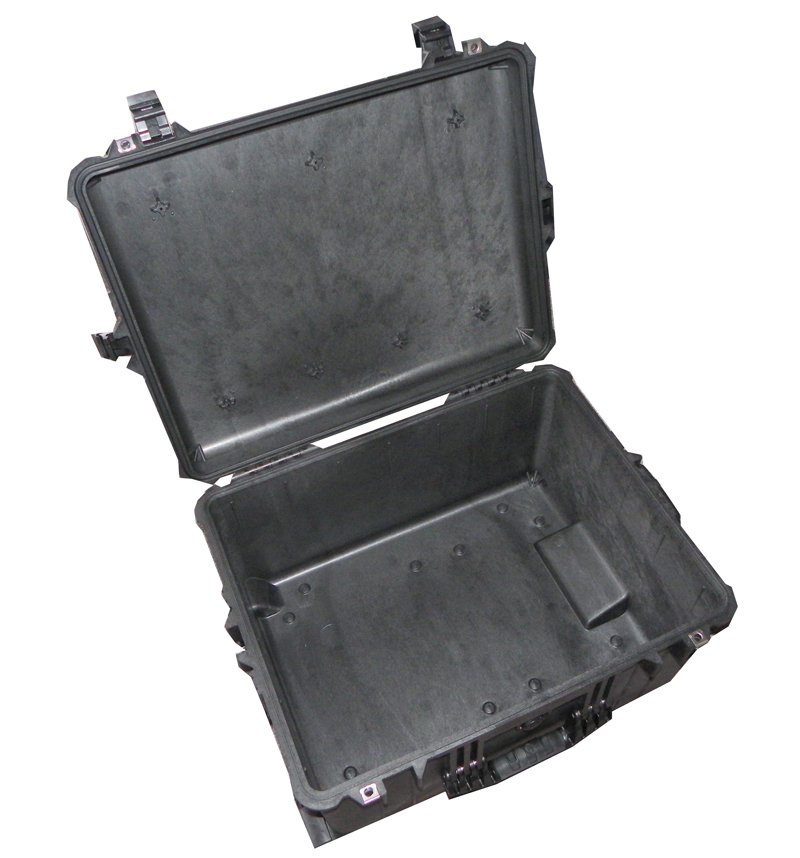

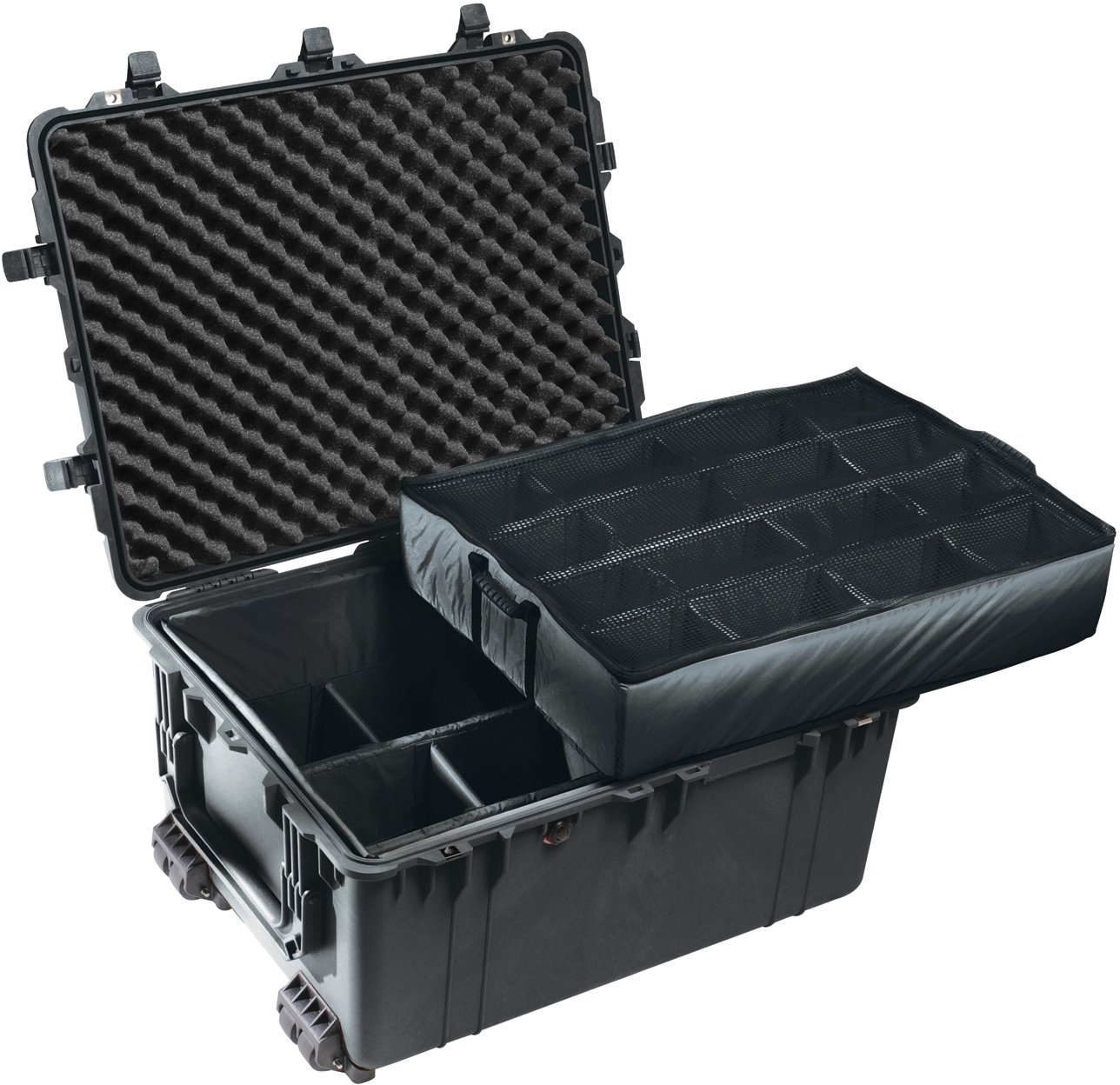

  • Available with padded dividers, Pick N Pluck foam or no foam
  • Made in the USA
  • Pelican limited lifetime warranty
Specifications

Specifications

Certifications
IP67 / Def Stan 81-41 / MIL-C-4150J / ATA 300
Wheels
4
Lid Depth
8.3 cm3.25"
Bottom Depth
30.8 cm12.14"
Total Depth
39.1 cm15.39"
Body Material
Polypropylene
Padlock Hole Diameter
8 mm5/16"
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
Minimum Temperature
-40°C-40°F
Maximum Temperature
87°C190°F
Warranty
Limited Lifetime
