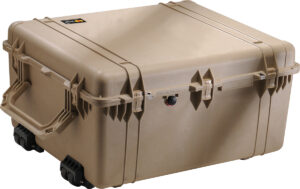

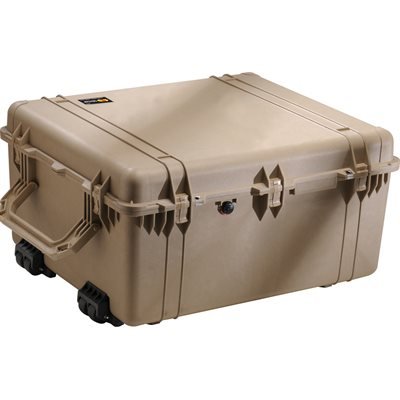

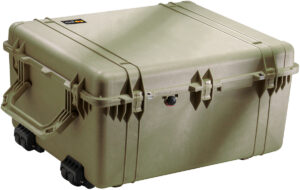

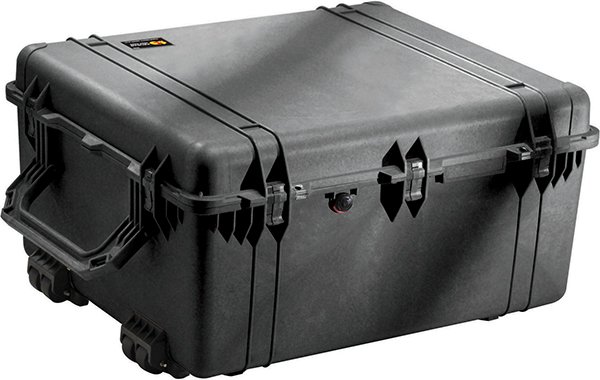

Pelican 1690 Protector Transport Case

Pelican 1690 Protector Transport Casepelican-1690-video-photographer-gear-caseimage_22_1.jpgpelican-usa-made-military-gear-hard-casepelican-1690-desert-tan-protector-casepelican-1690-desert-tan-transport-casebfdfbdfbdf.jpgpel.1690dtnf_1-b.jpgpelican-1690-foam-black-rolling-casepel_1690_closed_blk_low_2.jpgpel.1690dtnf_1-b_1_.jpgSAMSUNG DIGITAL CAMERApel_1690_closed_blk_low_1.jpg
$1,103.96 – $1,227.96Save Up to 20%

A large transport case on four wheels, with two-person handles.

  • Interior: 76.5 x 63.8 x 39 cm
  • Exterior: 84.9 x 72.1 x 44.8 cm
  • Depth: lid 7.3 cm, base 30.8 cm
  • Weight: 15.4 kg empty, 19.5 kg with foam

Insert: Choose

Colour: Choose

Pelican 1690 Protector Transport Case
$1,103.96 – $1,227.96
Pelican Marine Waterproof Floating Pouch XL

Free Marine Waterproof Floating Pouch XL with this case

Delivery

Choose your options above for a delivery price.

Will it fit?Inside 765 × 638 × 390 mm

Will it fit? Check your gear before you buy.

Pack one item or a whole kit, then see it in 3D. Inside this case: 765 × 638 × 390 mm

Try Will It Fit
Features

Features of the Pelican 1690 Protector Transport Case

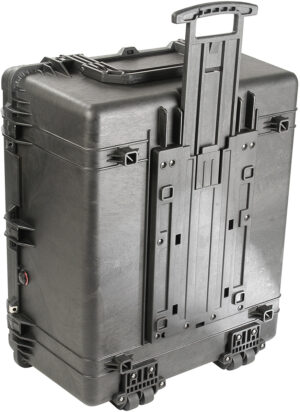

The 1690 is a large transport case, 76.5 x 63.8 x 39 cm inside (0.19 cubic metres). It rolls on four wheels with a retractable trolley handle, and large two-person fold-down handles help lift it when loaded.

  • Four polyurethane wheels with stainless steel bearings
  • Large two-person fold-down handles
  • Watertight, crushproof and dustproof
  • Open cell core with solid wall design, strong and light

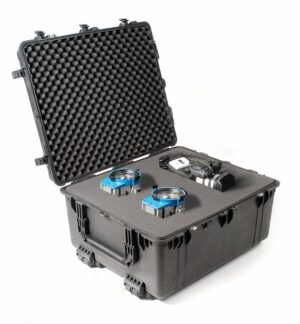

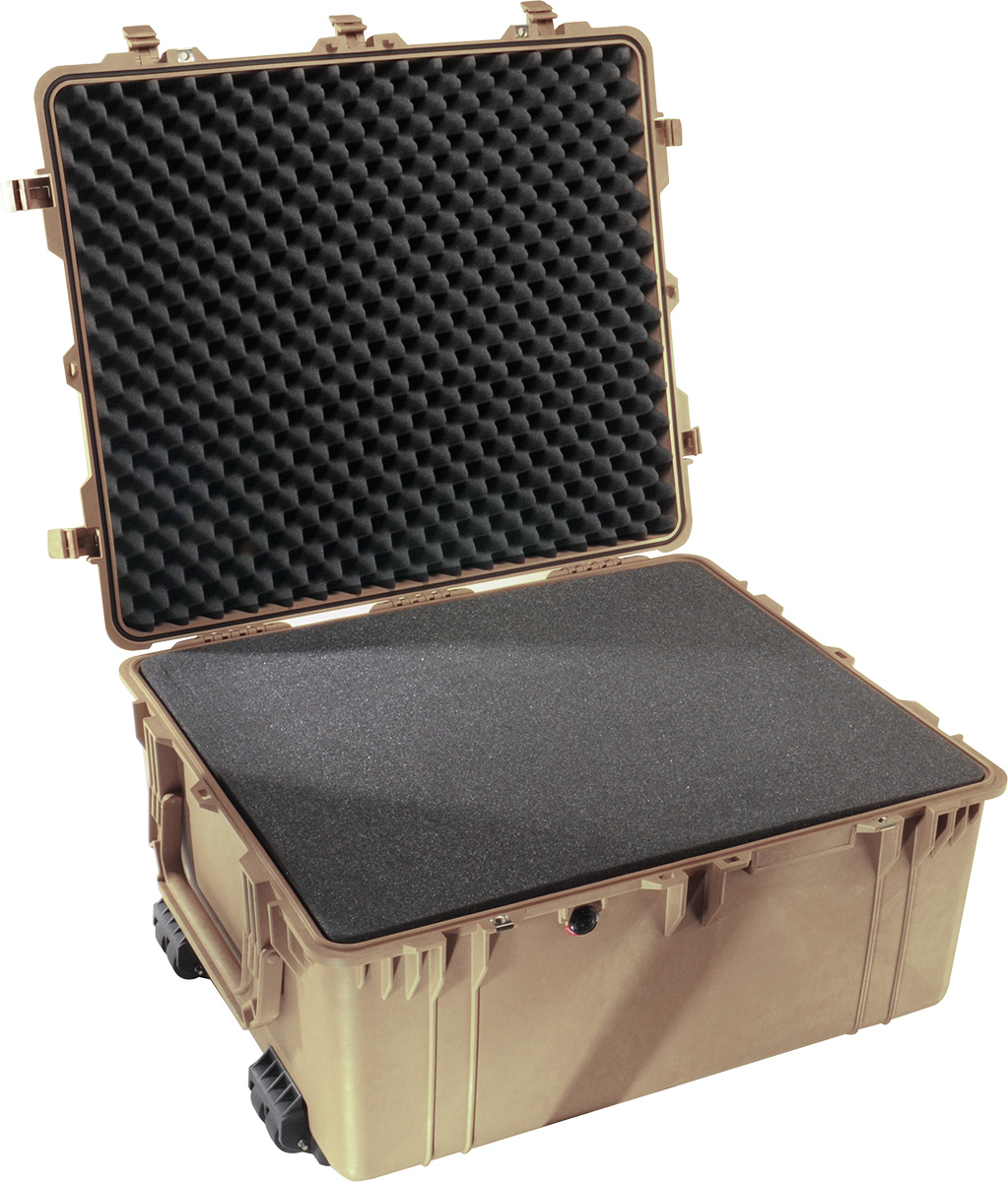

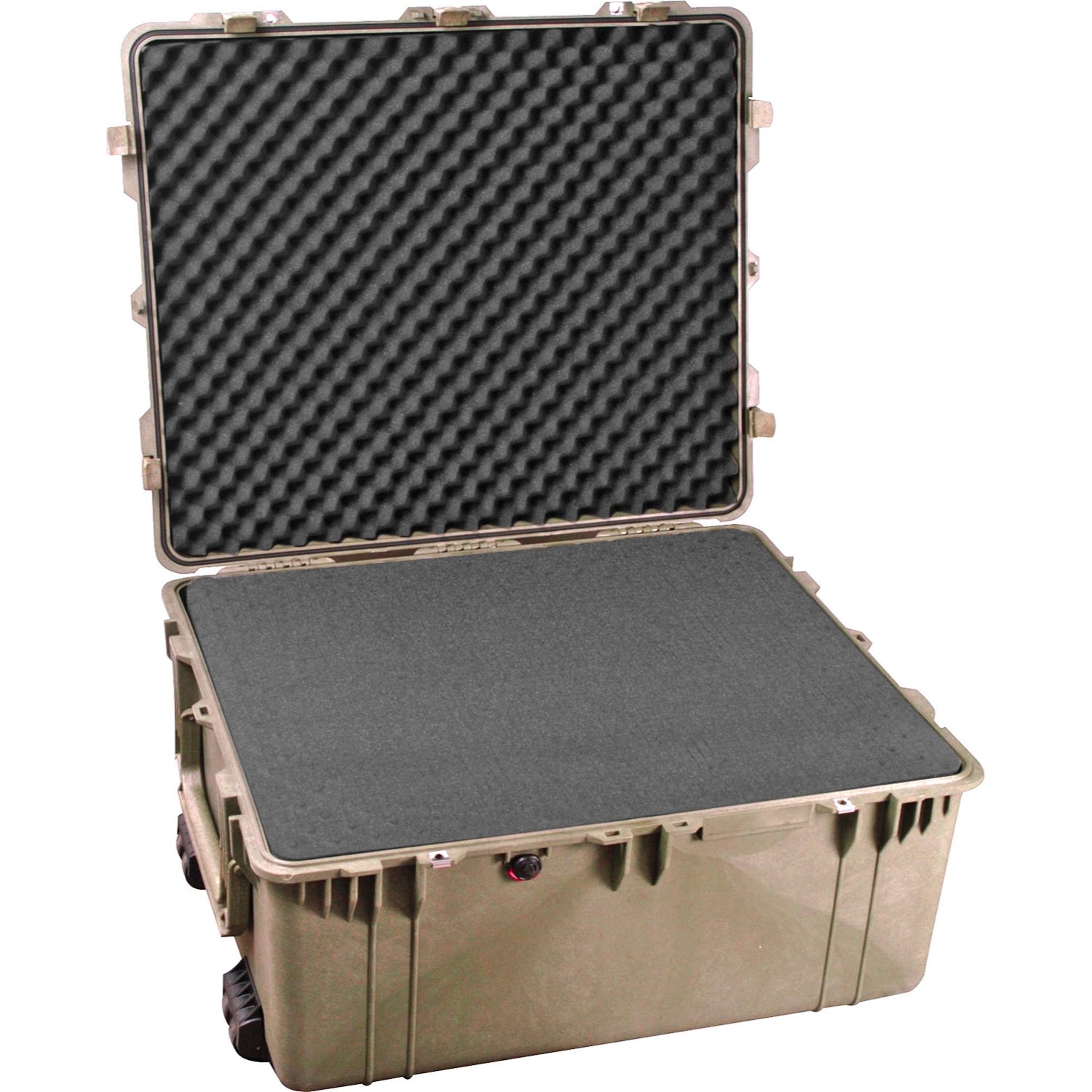

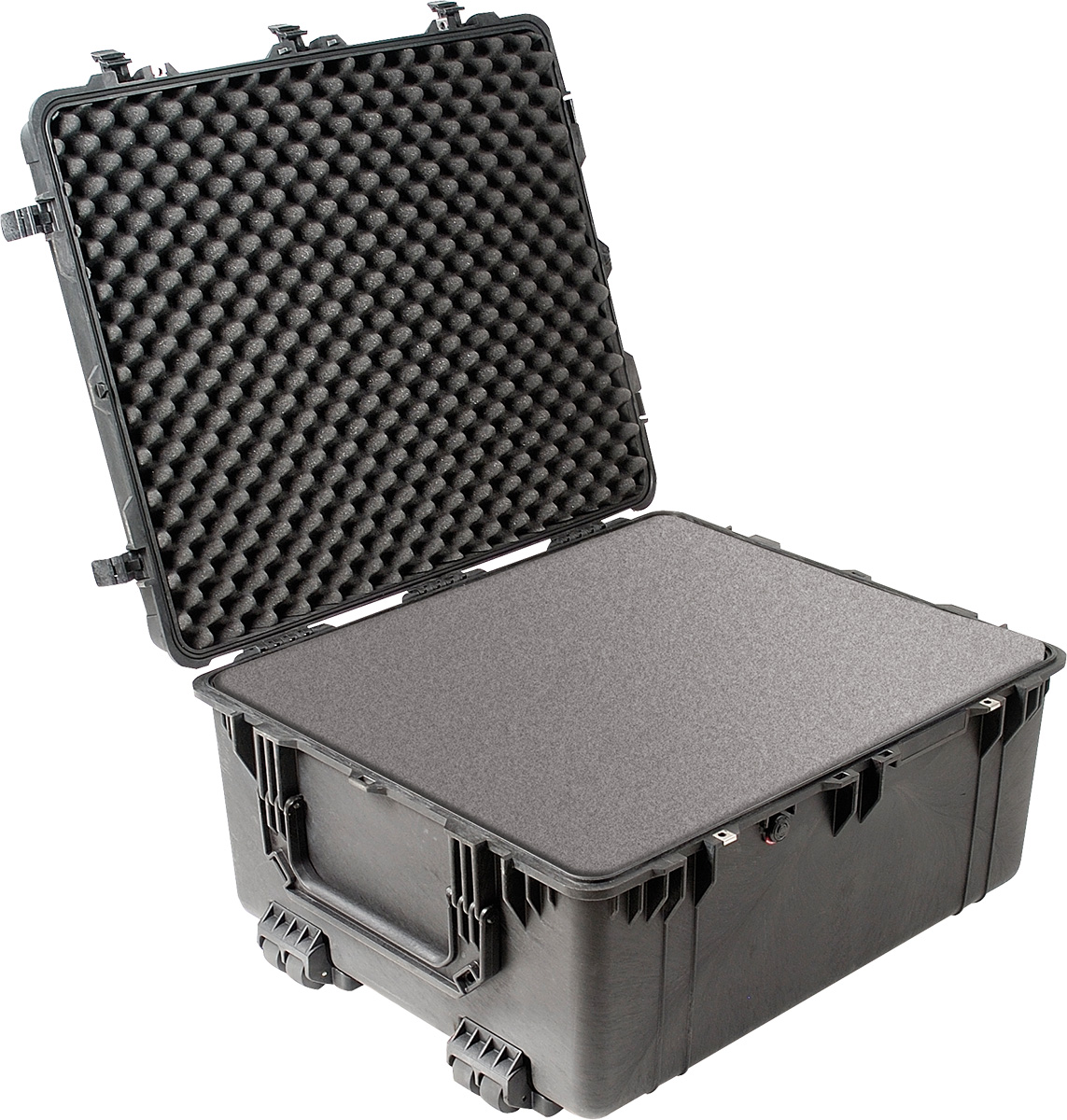

  • 3-layer Pick N Pluck foam with convoluted lid foam
  • Retractable trolley handle
  • Easy-open double-throw latches
  • Stainless steel padlock protectors
  • Automatic pressure equalisation valve
  • O-ring seal

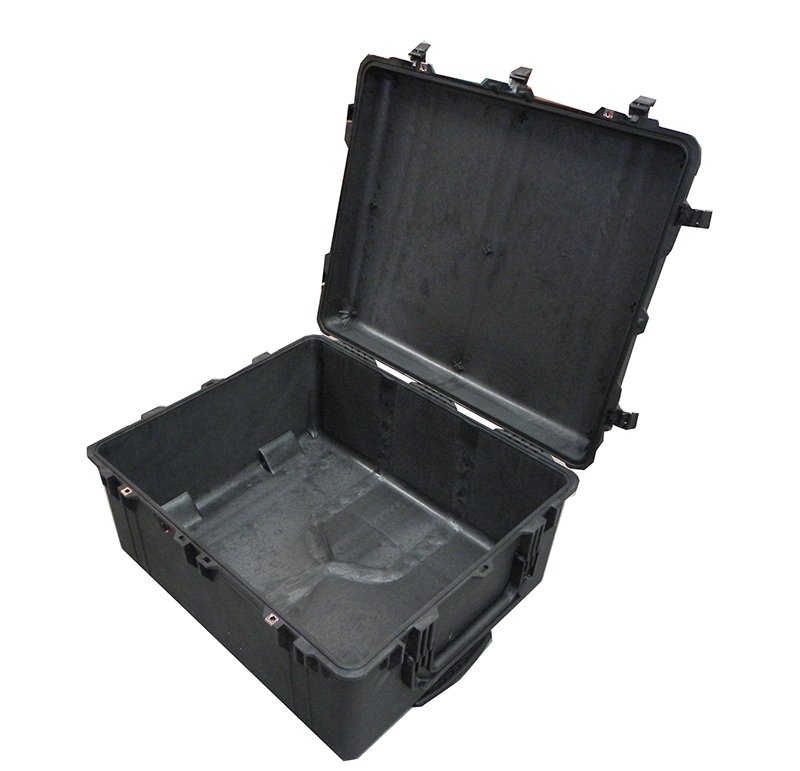

  • Available with padded dividers, Pick N Pluck foam or no foam
  • Made in the USA
  • Pelican limited lifetime warranty
Specifications

Specifications

Certifications
IP67 / Def Stan 81-41
Wheels
4
Lid Depth
7.3 cm2.86"
Bottom Depth
30.8 cm12.14"
Total Depth
39 cm15.36"
Body Material
Polypropylene
Padlock Hole Diameter
8 mm5/16"
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
Minimum Temperature
-40°C-40°F
Maximum Temperature
87°C190°F
Warranty
Limited Lifetime
