Pelican iM2500 Base Bezel Kit

Many Pelican™ cases can be adapted for use with electronic interface panels by using a Bezel Kit accessory. Mount most interface panels (customer supplied) on the desired area in a Pelican™ Storm Case™ Series, and your technology is ready to go.

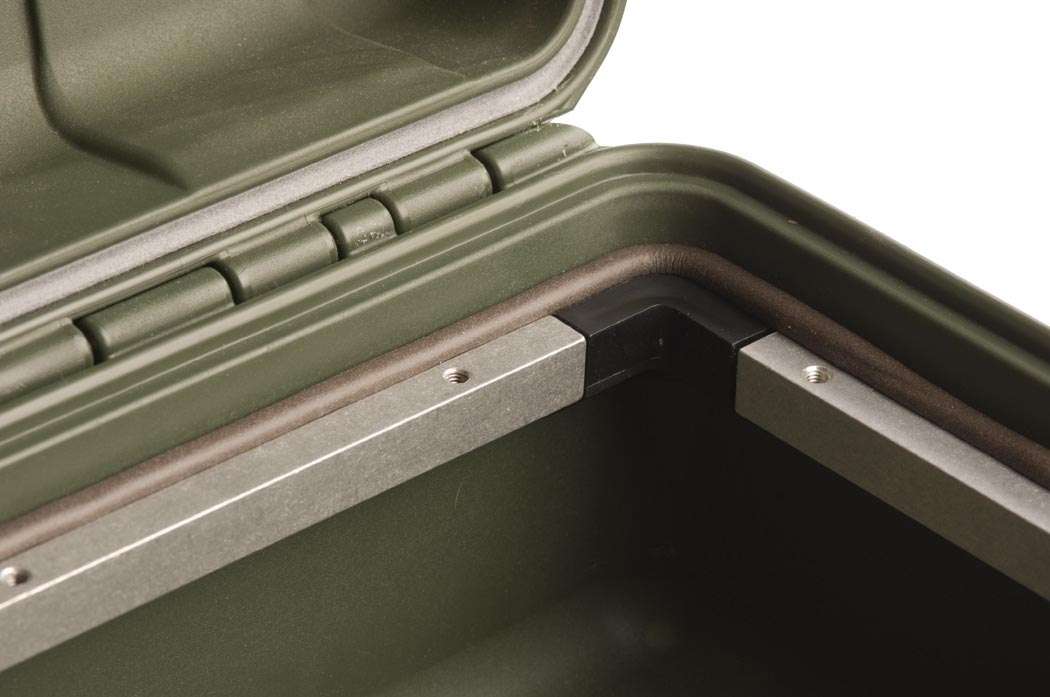

A polymer o-ring seals the panel so the base of the case remains watertight, even with the lid open. The mounting bracket, fasteners and o-ring are included in the Bezel Kit.

*The standard bezel kit has #10-32 tapped holes at the top where the equipment is mounted.

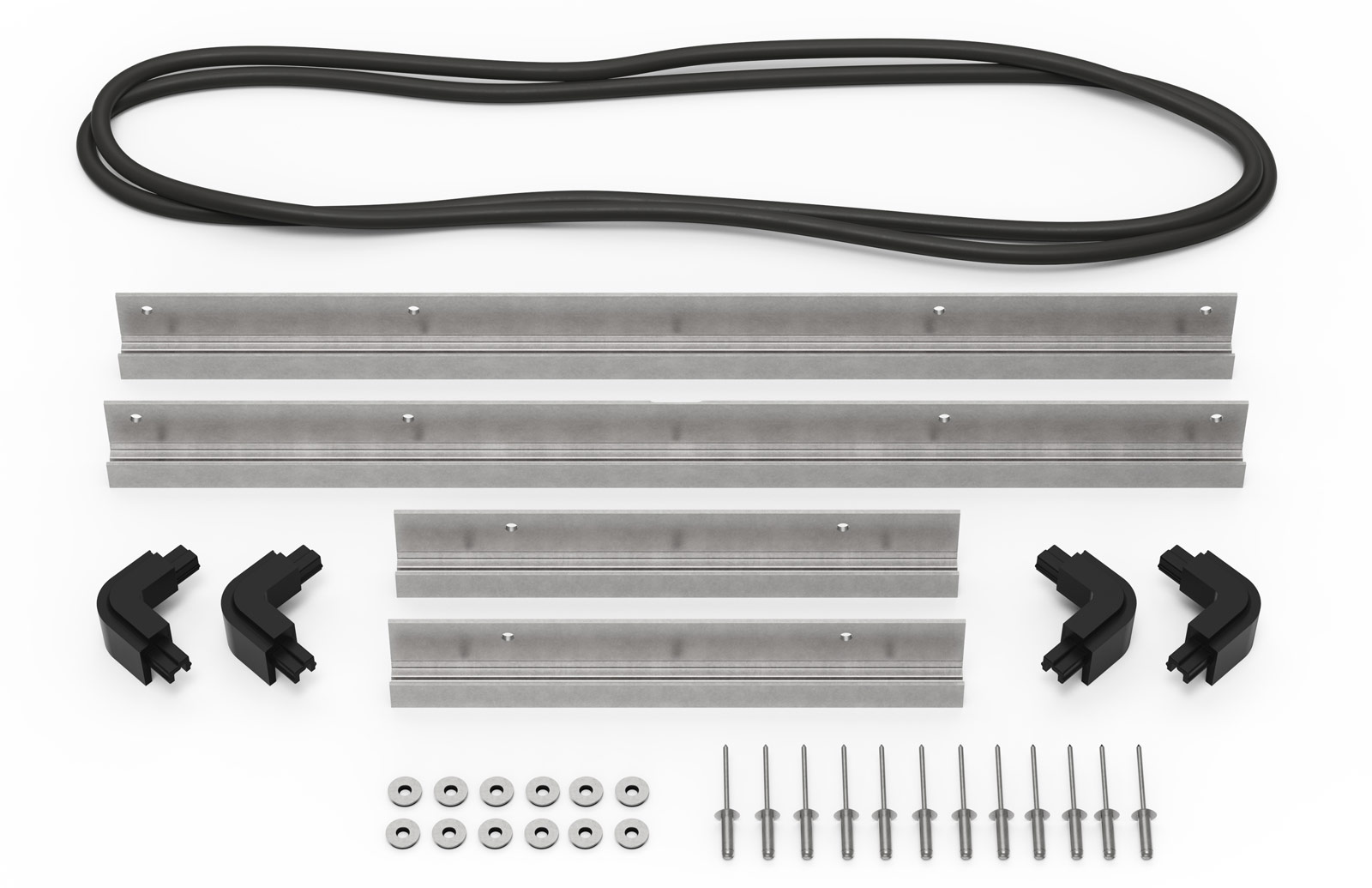

Kit includes:

• (4) Molded Corner Pieces
• (1) Silicone Perimeter Gasket
• (2) Front & Back Rails
• (2) Side Rails
• (12) Rivets
• (12) Sealing Washers
