Pelican

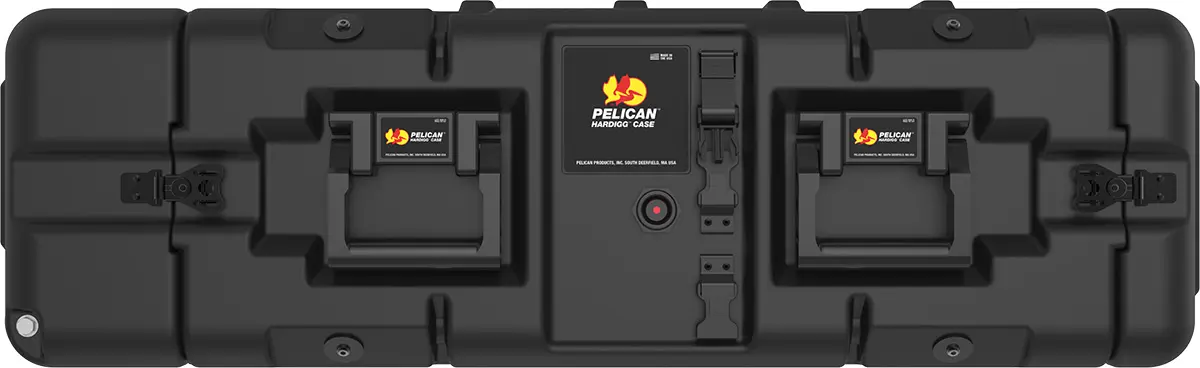

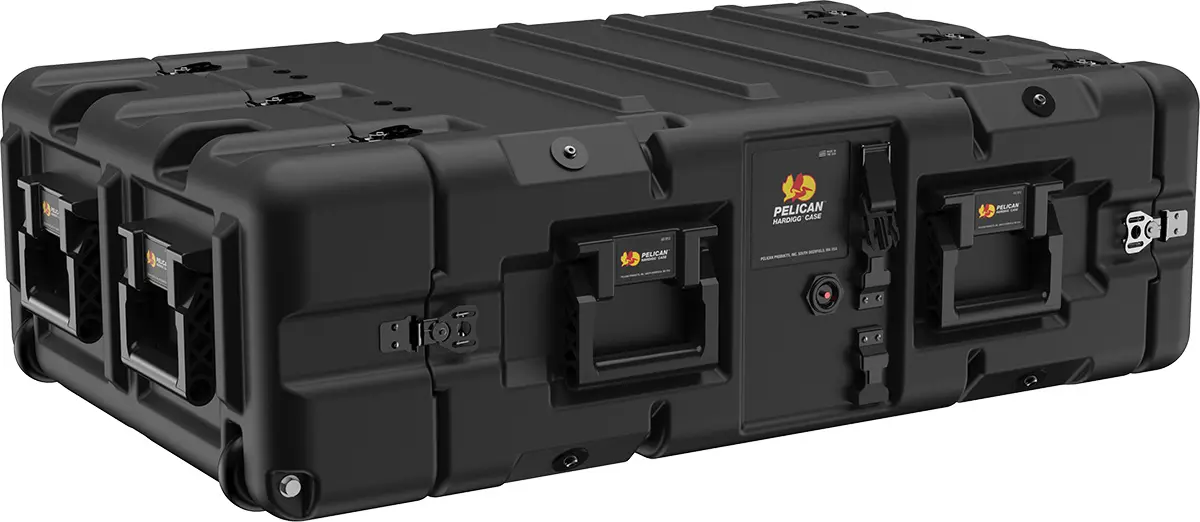

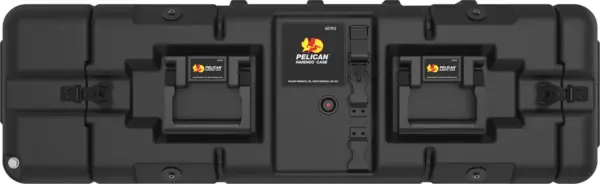

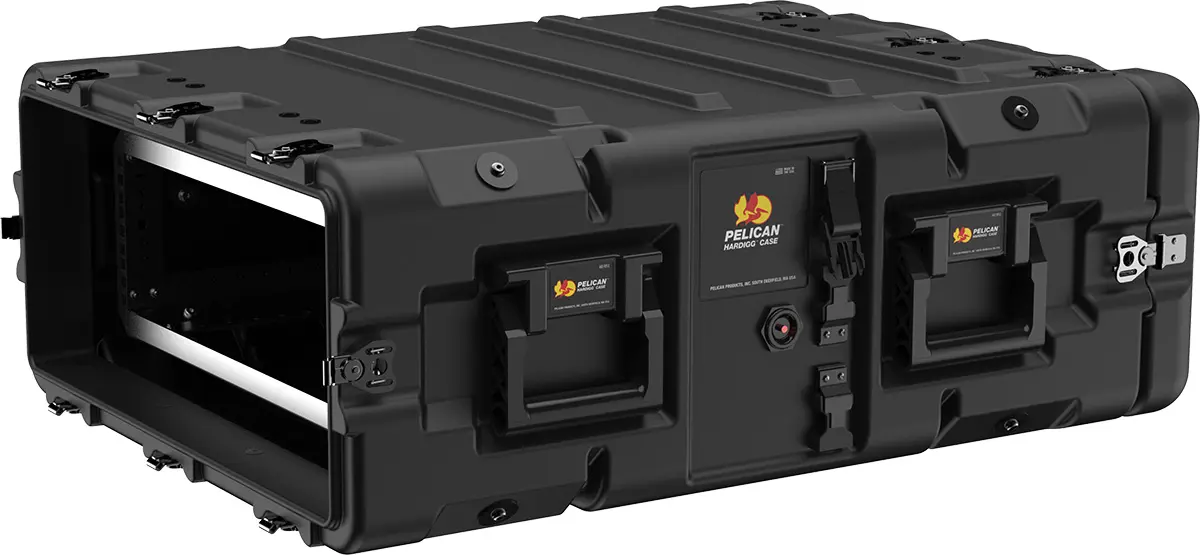

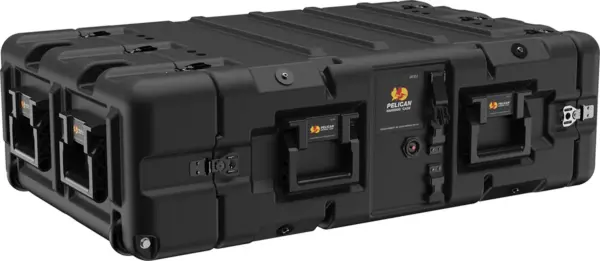

Pelican Super V 3U Rack Mount Case
Exterior (L×W×D): 97.8 x 71.9 x 29 cm
Rack Height: 13.3 cm
Rack Depth: 61 cm
Interior Lid Depth: 5.6 cm
Interior Back Lid Depth: 13.2 cm
Weight: 22.7 kg

Original price was: $3,669.95.Current price is: $3,119.00.

In Stock at Supplier (ships 3-5 days)

Quick Quote

Enter your postcode or suburb to generate your quote.



📦 Additional Shipping Options may be available at Checkout
SKU: VS3U Categories: ,

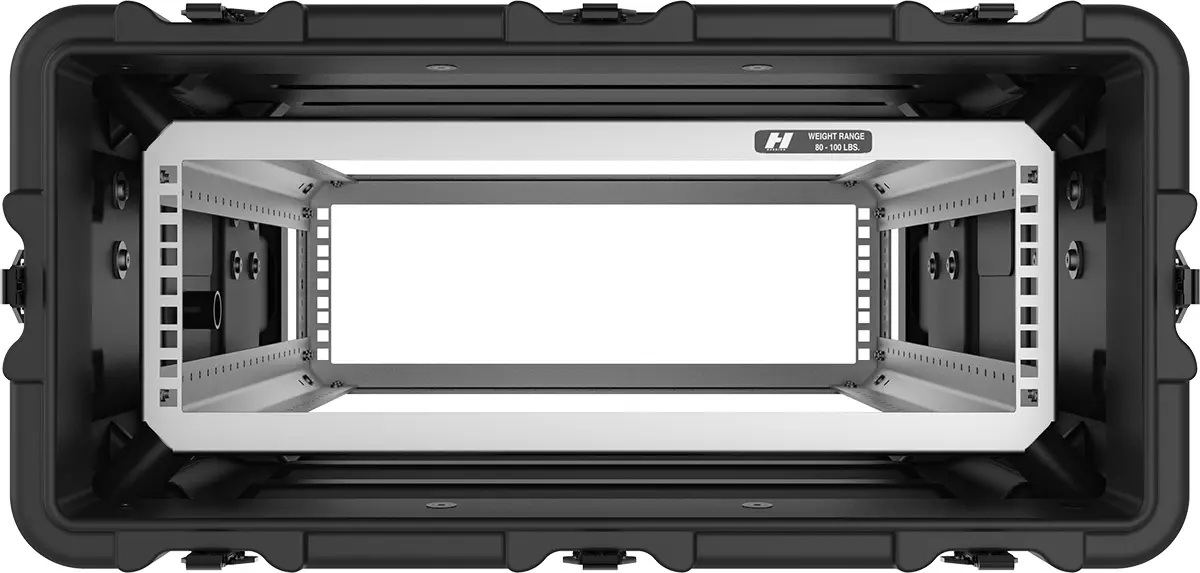

V-Series cases utilize a full-boxed 19″ steel rack with an industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.

24″ Super-V Rack Mount Case is a smooth surface case with a 19″ wide and 24″ deep EIA standard rack.

  • High-strength steel rack frame supports equipment from 10 – 50 kg
  • Designed to meet the requirements of Def Stan 81-41 Level J, Mil Standard 810, STANAG 4340 and other European standards.
  • Designed to meet ANSI/EIA-310-C for universal rack mounting hole pattern
  • 10 different models, frame heights 4-12U in two depths, 480 and 610mm
  • Fixed square hole frame for universal equipment fit
  • 2” Front Lid, 5” Rear Lid
  • Lid hangers for lid storage while in use
  • Anti-reflective black hardware
  • Coupling catches for secure stacking
  • Sealed gasket and PRV keeps container watertight and eliminates over pressurization
  • Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
  • Comfort Grip plastic handles
  • Molded in rear edge casters with handles on the lid for ease of movement
  • REACH and RoHs compliant
Body Material

RotoMolded Polyethylene

O-Ring Material

Silicone Sponge

Purge Body Material

Aluminum

Hardware Material

Stainless Steel (Black Oxide) / RoHs Nickel Black

Frame Material

Steel (Clear Coated)
