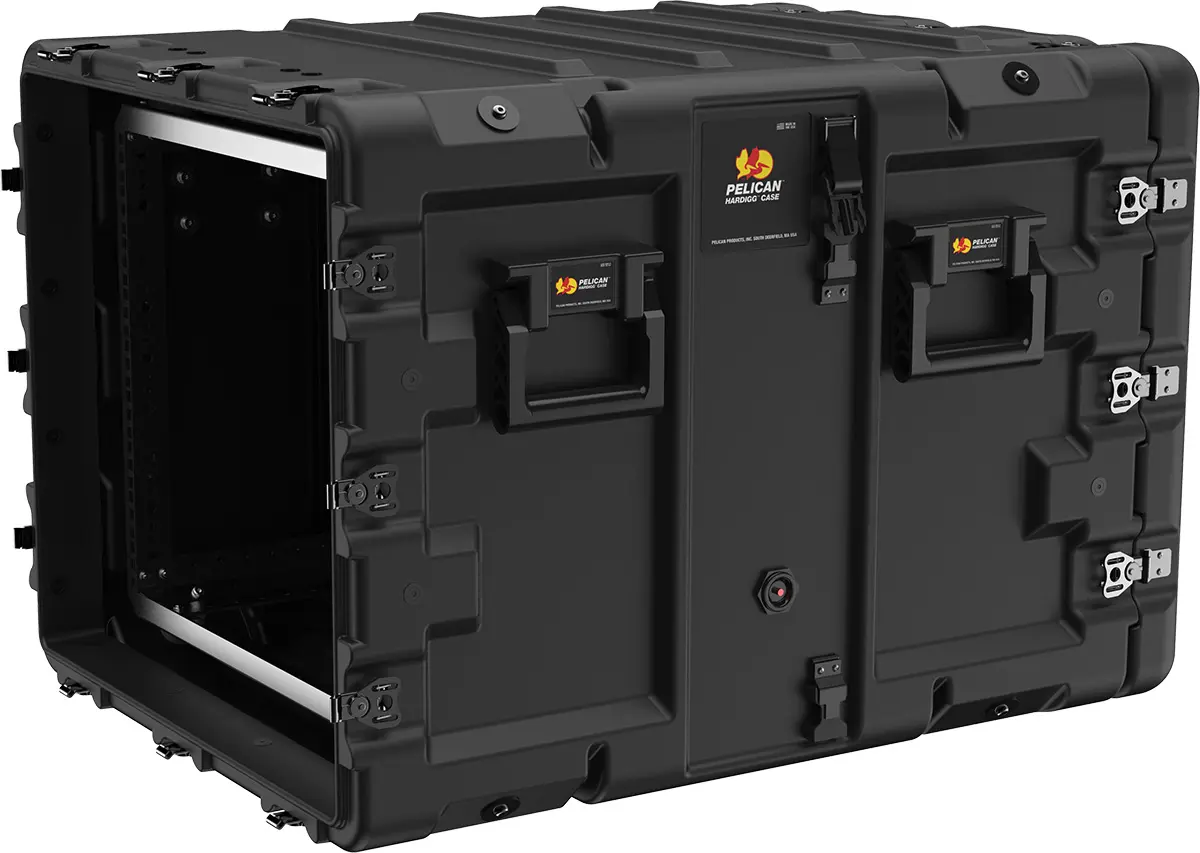

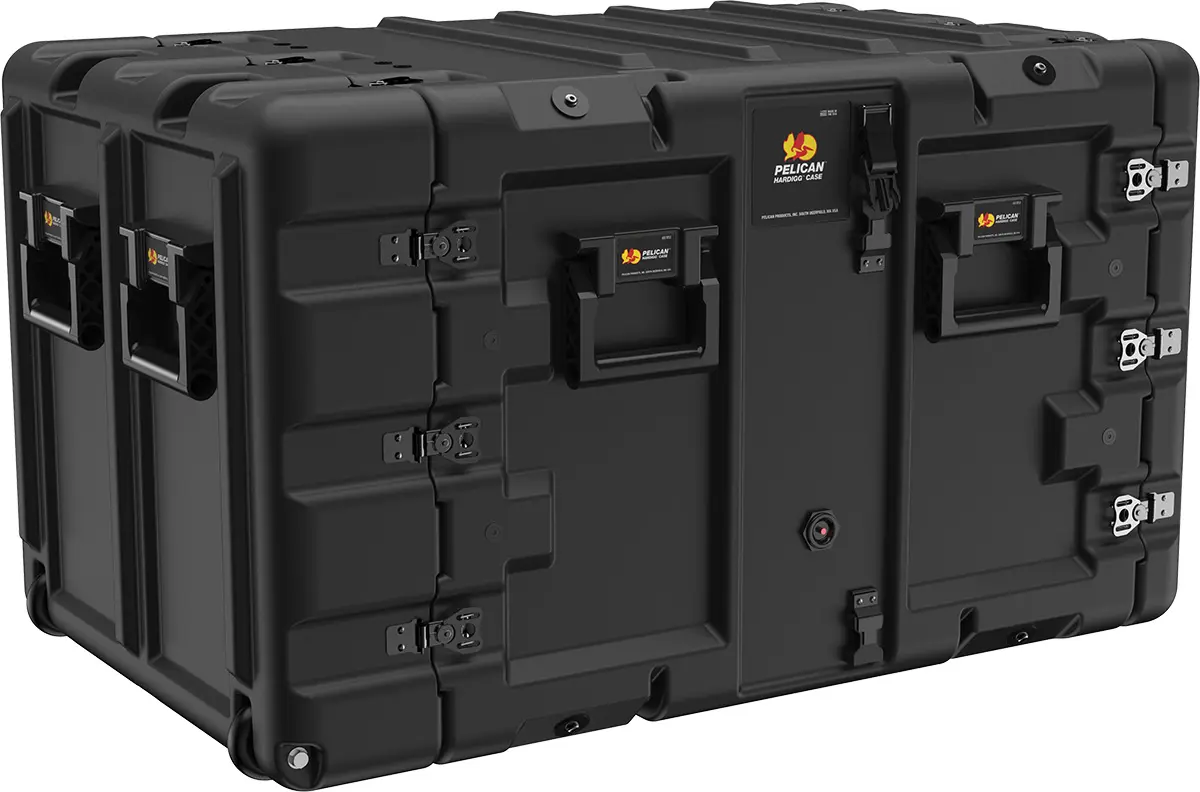

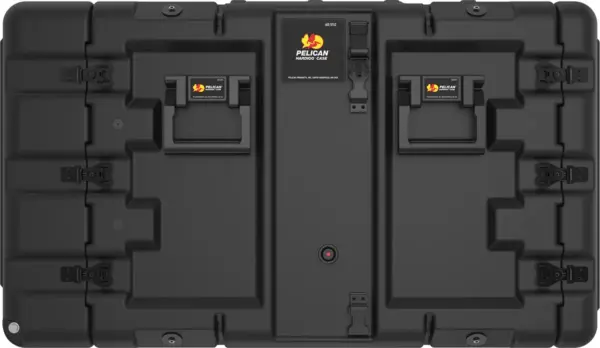

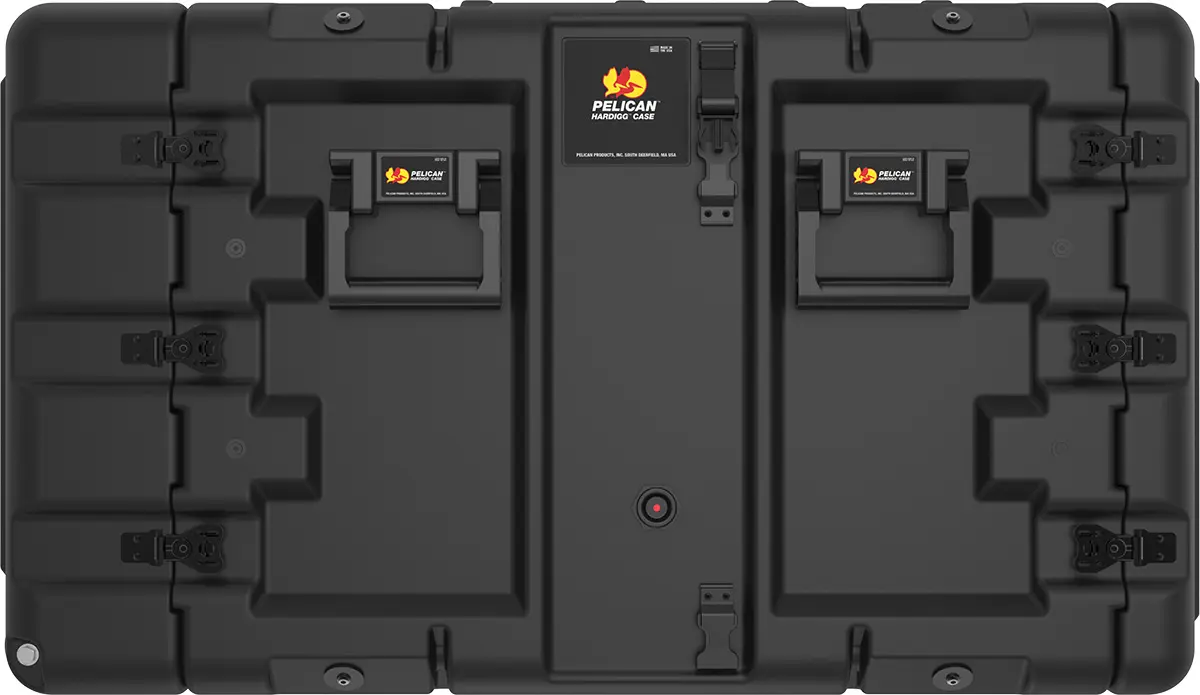

Pelican Super V 9U Rack Mount Case
Exterior (L×W×D): 97.8 x 71.9 x 55.6 cm
Rack Height: 40 cm
Rack Depth: 61 cm
Interior Lid Depth: 5.6 cm
Interior Back Lid Depth: 13.2 cm
Weight: 29 kg

Original price was: $4,304.95.Current price is: $3,659.00.

In Stock at Supplier (ships 3-5 days)

Quick Quote

Enter your postcode or suburb to generate your quote.



📦 Additional Shipping Options may be available at Checkout
SKU: VS9U Categories: ,

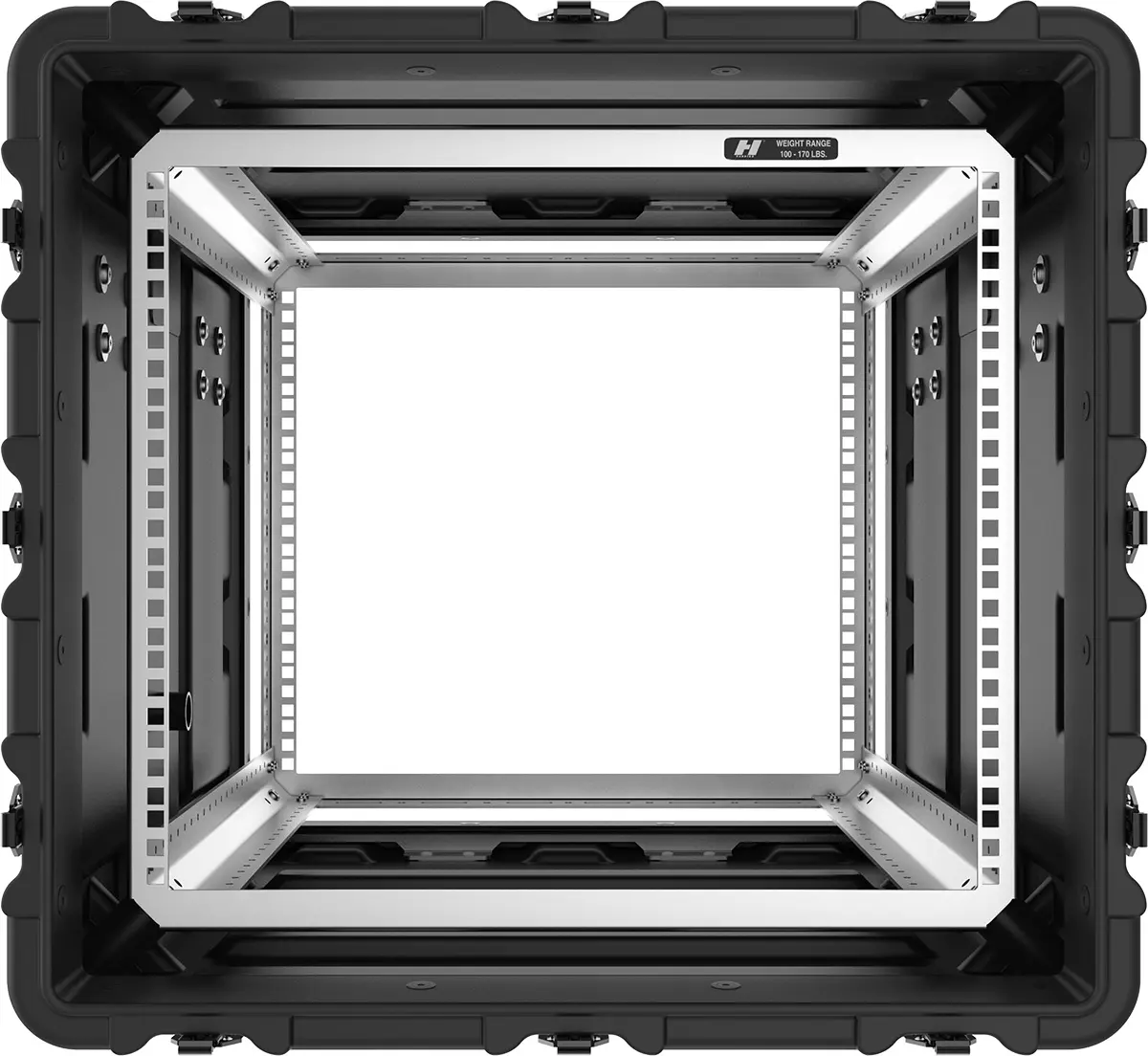

V-Series cases utilize a full-boxed 19″ steel rack with an industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.

24″ Super-V Rack Mount Case is a smooth surface case with a 19″ wide and 24″ deep EIA standard rack.

  • SUPER V-SERIES 9U, 2119-02/29/05W
  • Engineered to provide secure transport for rack mountable electronics
  • Equipment payload weight ranges for 3U – 5U = 80-100 lbs. (36-45 kg) per case
  • Weight ranges for 7U – 14U = 100-170lbs per case
  • Fixed square hole frame for universal equipment fit
  • 2” Front Lid, 5” Rear Lid
  • Lid hangers for lid storage while in use
  • Anti-reflective black hardware
  • Coupling catches for secure stacking
  • Sealed gasket and PRV keeps container watertight and eliminates over pressurization
  • Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
  • Comfort Grip plastic handles
  • Molded in rear edge casters with handles on the lid for ease of movement
  • REACH and RoHs compliant
  • Available in 3U, 4U, 5U, 7U, 9U, 11U, and 14U
Body Material

RotoMolded Polyethylene

O-Ring Material

Silicone Sponge

Purge Body Material

Aluminum

Hardware Material

Stainless Steel (Black Oxide) / RoHs Nickel Black

Frame Material

Steel (Clear Coated)
